WNFT-237ACN(BT)

802.11ac Wave 2 Compliant with MU-MIMO, WiFi+Bluetooth 5.0, M.2 Module (WiFi 5), RTL8822CE, 2T2R



  • Chipset: Realtek RTL8822CE
  • Antenna: 2 x IPEX MHF4 connectors, 2T2R
  • Interface: PCIe: WLAN; USB: Bluetooth
  • Output Power up to 18dBm
  • Support: Windows 10, Linux, Android



Share:
Enquire Here DatasheetDownload Driver



Product Overview



Sparklan WNFT-237ACN(BT) is an 802.11ac/a/b/g/n Dual -Band WiFi+Bluetooth M.2 (Key A,E) module (WiFi 5) based on Realtek RTL8822CE chipset, It supports Multiple drivers (Android/ Windows/ Linux) for various platform. This module support MU-MIMO two steams on dual band 2.4GHz or 5GHz operating and incorporates the latest Bluetooth 5.0, the data rate up to 867Mbps on ac mode. The WNFT-237ACN(BT) is designed by M.2 2230 slot type form factor.

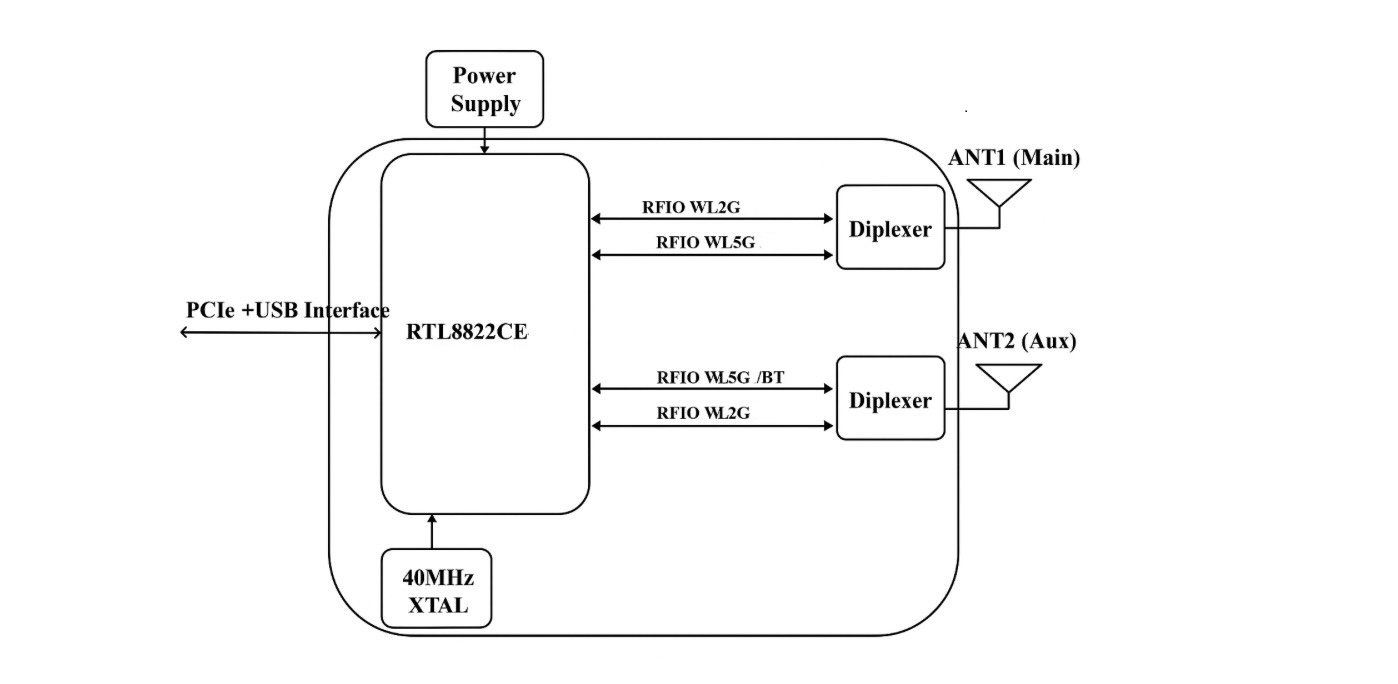

The WNFT-237ACN(BT) is using highly integrated single-chip MIMO (Multiple In, Multiple Out) wireless local area network (WLAN) RTL8822CE solution to let users enjoy the high digital content through the latest wireless technology without using cables and cords. RTL8822CE combines a WLAN MAC, a 2T2R capable WLAN baseband, and RF in a single chip. WNFT-237ACN(BT) module enables a high performance, cost effective, low power, compact solution that easily fits in the PCI Express and USB M.2 2230 A-E Key module which is Incorporated with advanced security encryption WEP, WPA, WPA2, WPS,WPA3, and 802.1x, it will prevent user’s devices from malicious attacks.



Suitable Application



Tablet/ Notebook/ Advertising machine/ OTT Box/ IPTV/ DVB/ STB / DV/ IPC/ Mini Driving Recorder/ Doorbell / Smart TV/ Intelligent Projector Pico/ VR/ AR terminal/ Wireless storage/ Printer/ POS machine/ Vehicle mounted front/ Rear Terminal UAV/ Robot/ Intelligent Gateway/ Smart city and other consumer electronic products.



Certifications



FCC Certification LogoCE Certification LogoMIC Certification LogoIC Certification LogoASNZ Certification Logo
USAEU RegionJapanCanadaAUSTRALIA



Specification



STANDARD
WI-FIIEEE 802.11ac/a/b/g/n
ChipsetRealtek RTL8822CE
Host Interface

WLAN : PCIe

RADIO
Antenna2 x IPEX MHF4 connectors
Operating Frequency802.11ac/a/b/g/n ISM Band

2.412GHz~2.484GHz

5.150GHz~5.850GHz

*Subject to local regulations

MODULATIONS
802.11bDSSS (DBPSK, DQPSK, CCK)
802.11gOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11nOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11aOFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11acOFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
POWER & SENSITIVITY
WiFiPower – TX (± 2dBm)Sensitivity – RX
11b @ 11Mbps18dBm≤ -85dBm
11g @ 54Mbps17dBm≤ -74dBm
11gn HT20 @ MCS 716dBm≤ -70dBm
11gn HT40 @ MCS 716dBm≤ -67dBm
11a @ 54Mbps17dBm≤ -68dBm
11an HT20 @ MCS 716dBm≤ -67dBm
11an HT40 @ MCS 716dBm≤ -64dBm
11ac VHT80 @ MCS 914dBm≤ -54dBm
POWER CONSUMPTION
Continue TX606mA
Continue RX302mA
ENVIRONMENTAL
Operating VoltageDC 3.3V
Temperature Range0~ 70°C (Operating)-40 ~ 80°C (Storing)
Humidity (Non-Condensing)5 ~ 90% (Operating)5 ~ 90% (Storing)
SIZE
Dimension (MM)30mm(±0.15mm) x 22mm(±0.15mm) x 2.0mm(±0.15mm)
Weight2.5g
SOFTWARE
DriverWindows 10
Linux
Android
Security64/128-bits WEP, WPA, WPA2, WPA3, 802.1x
