WNFQ-290BE

802.11be/ax/ac/a/b/g/n  Tri-band WiFi Combo,

M.2 2230 (E KEY) Module (WiFi 7), Qualcomm, 2T2R



  • Chipset: Qualcomm QCC2073
  • Antenna: 2 x IPEX MHF4 connectors, 2T2R
  • Interface: PCIe: WLAN ; USB
  • Support: Linux (Open Source)



Want M.2 LGA Type Variant ? Check Out WNSQ-290BE

Categories: , Tags: , ,
Share:
Enquire Here Datasheet

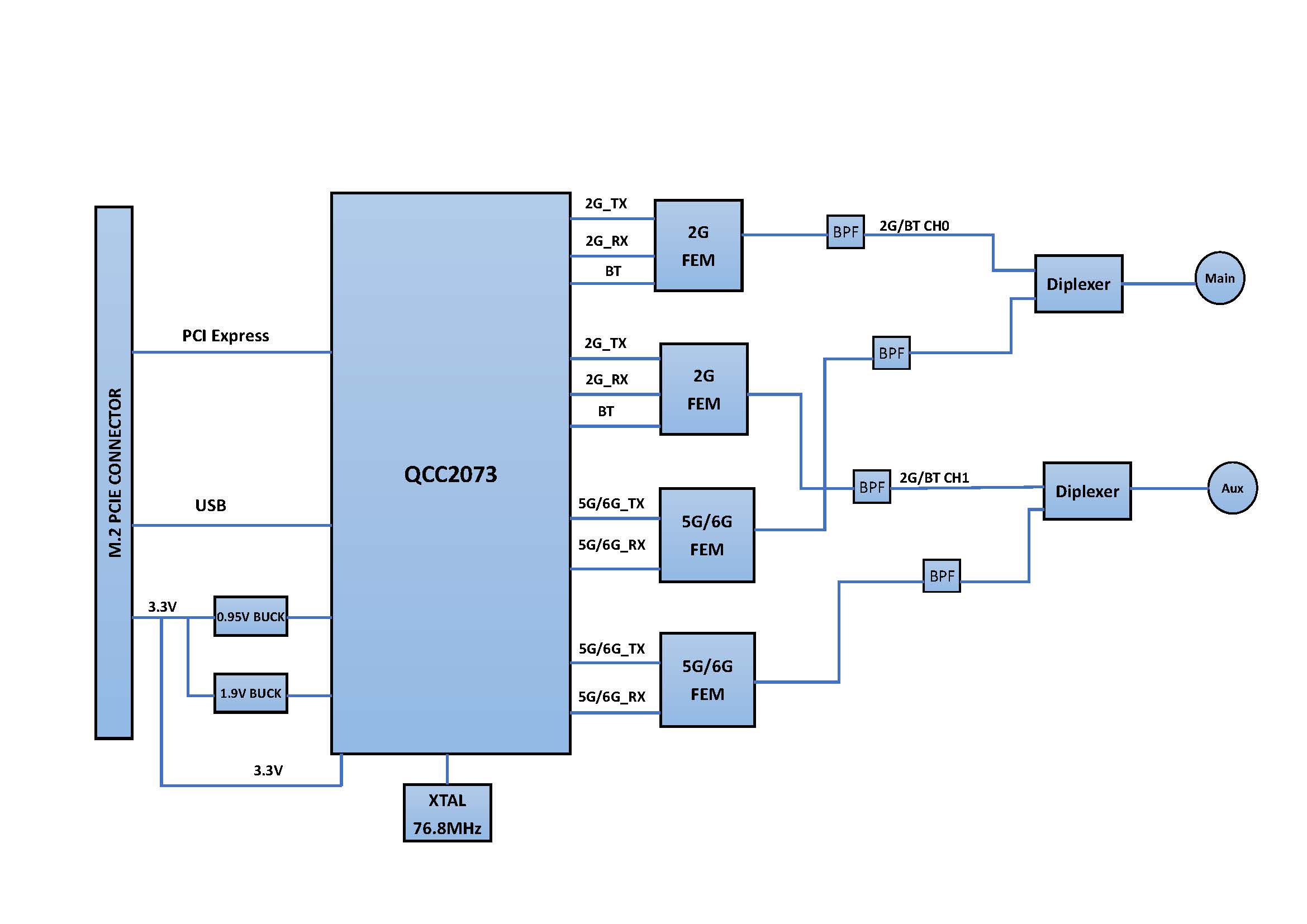

Product Overview



WNFQ-290BE, first Qualcomm based WiFi-7 (802.11be) module in M.2 2230 E key formfactor, running PCIe (Wifi) and USB, with Tri-band capability (2.4GHz, 5GHz, and 6GHz). WNFQ-290BE supports single band operation on 2.4GHz with 5GHz, or 6GHz, and support IEEE802.11 be/ax/ac/a/b/g/n protocol, up to 160MHz mode.



WNFQ-290BE designed with 2 spatial streams (2T2R, or 2×2) in MU-MIMO mode. With a standard M.2 E key 2230 formfactor, WNFQ-290BE can accommodate to all existing platform that has M.2 Adaptor pre-integrated, no extra work with platform design.



Software wise WNFQ-290BE support Linux (Open Source) in the near future. The module is capable to run on both x86 platform and ARM based platform, and supports STA mode and Soft AP Mode*, recommend to run on application includes: digital signage/POS, rugged computer / tablets, fanless automation PC and other industrial environment applications that requires high speed data transmission.

Suitable Application



Applications include IPC/ Advertising machine/ OTT/ IPTV/ DVB/ STB / DV/ Mini Driving Recorder/ Intelligent Projector Pico/ VR/ AR terminal/ POS machine/ Vehicle mounted front/ Rear Terminal UAV/ Robot/ Intelligent Gateway/ Smart city and other electronic products.

Certifications



Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11be/ax/ac/a/b/g/n
Chipset Qualcomm QCC2073
Host Interface WLAN : PCIe / USB
RADIO
Antenna 2 x IPEX MHF4 connectors
Operating Frequency 802.11be/ax/ac/a/b/g/n ISM Band
2.400GHz~2.4835GHz

5.150GHz~5.850GHz

5.925GHz~7.125GHz

*Subject to local regulations

MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
802.11be OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 18 dBm ≤ -91 dBm
11g @ 54Mbps 16 dBm ≤ -77.5 dBm
11gn HT20 @ MCS 7 16.5 dBm ≤ -76.5 dBm
11gn HT40 @ MCS 7 14.5 dBm ≤ -74 dBm
11a @ 54Mbps 16 dBm ≤ -76.5 dBm
11an HT20 @ MCS 7 15 dBm ≤ -76 dBm
11an HT40 @ MCS 7 14.5 dBm ≤ -73.5 dBm
11ac VHT80 @ MCS 9 13 dBm ≤ -64.5 dBm
11ac VHT160 @ MCS 9 13 dBm ≤ -62 dBm
11ax 2.4GHz
11ax HE40 @ MCS 11 14.5 dBm ≤ -62 dBm
11ax 5GHz
11ax HE20 @ MCS 11 13 dBm ≤ -64 dBm
11ax HE40 @ MCS 11 12.5 dBm ≤ -61.5 dBm
11ax HE80 @ MCS 11 12.5 dBm ≤ -58.5 dBm
11ax HE160 @ MCS 11 12.5 dBm ≤ -55.5 dBm
11ax HE20 @ MCS 13 12 dBm ≤ -58 dBm
11ax HE40 @ MCS 13 12 dBm ≤ -55 dBm
11ax HE80 @ MCS 13 12 dBm ≤ -52 dBm
11ax HE160 @ MCS 13 12 dBm ≤ -49.5 dBm
11ax 6GHz
11ax HE20 @ MCS 11 12 dBm ≤ -63 dBm
11ax HE40 @ MCS 11 11.5 dBm ≤ -60.5 dBm
11ax HE80 @ MCS 11 11.5 dBm ≤ -57.5 dBm
11ax HE160 @ MCS 11 11.5 dBm ≤ -54.5 dBm
11ax HE20 @ MCS 13 11 dBm ≤ -57 dBm
11ax HE40 @ MCS 13 11 dBm ≤ -54 dBm
11ax HE80 @ MCS 13 11 dBm ≤ -51 dBm
11ax HE160 @ MCS 13 11 dBm ≤ -48.5 dBm
11be 2.4GHz
11be EHT40 @ MCS 11 14.5 dBm ≤ -62 dBm
11be 5GHz
11be EHT20 @ MCS 11 13 dBm ≤ -64 dBm
11be EHT40 @ MCS 11 12.5 dBm ≤ -61.5 dBm
11be EHT80 @ MCS 11 12.5 dBm ≤ -58.5 dBm
11be EHT160 @ MCS 11 12.5 dBm ≤ -55.5 dBm
11be EHT20 @ MCS 13 12 dBm ≤ -58 dBm
11be EHT40 @ MCS 13 12 dBm ≤ -55.5dBm
11be EHT80 @ MCS 13 12 dBm ≤ -52.5 dBm
11be EHT160 @ MCS 13 12 dBm ≤ -49.5 dBm
11be 6GHz
11be EHT20 @ MCS 11 12 dBm ≤ -63 dBm
11be EHT40 @ MCS 11 11.5 dBm ≤ -60.5 dBm
11be EHT80 @ MCS 11 11.5 dBm ≤ -57.5 dBm
11ax EHT160 @ MCS 11 11.5 dBm ≤ -54.5 dBm
11be EHT20 @ MCS 13 11 dBm ≤ -57 dBm
11be EHT40 @ MCS 13 11 dBm ≤ -54.5 dBm
11be EHT80 @ MCS 13 11 dBm ≤ -51.5 dBm
11be EHT160 @ MCS 13 11 dBm ≤ -48.5 dBm
POWER CONSUMPTION
Continue TX 802 mA (MAX)
Continue RX 407 mA (MAX)
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range -10~ +65°C (Operating) -40 ~ 85°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 90% (Storing)
SIZE
Dimension (MM) 30mm (±0.15mm) x 22mm (±0.15mm) x 2.6mm (±0.3mm)
Weight 2.91 g
SOFTWARE
Driver (MM) Linux (Open Source)
Security WPS2.0, WAPI, WPA, WPA2, WPA3
Miscellaneous
Warranty 12 Month
HS Code 8517620050
