NEW

WNFQ-292BE

802.11be/ax/ac/a/b/g/n  Industrial Capable Tri-band WiFi Combo,

M.2 2230 (E KEY) Module (WiFi 7), Qualcomm, 2T2R



  • Chipset: Qualcomm QCC2076
  • Antenna: 2 x IPEX MHF4 connectors, 2T2R
  • Interface: PCIe: WLAN / USB
  • Supports Dual-Band Dual Concurrent Design
  • Support: Linux



Categories: , Tags: , , ,
Share:
Enquire Here Datasheet

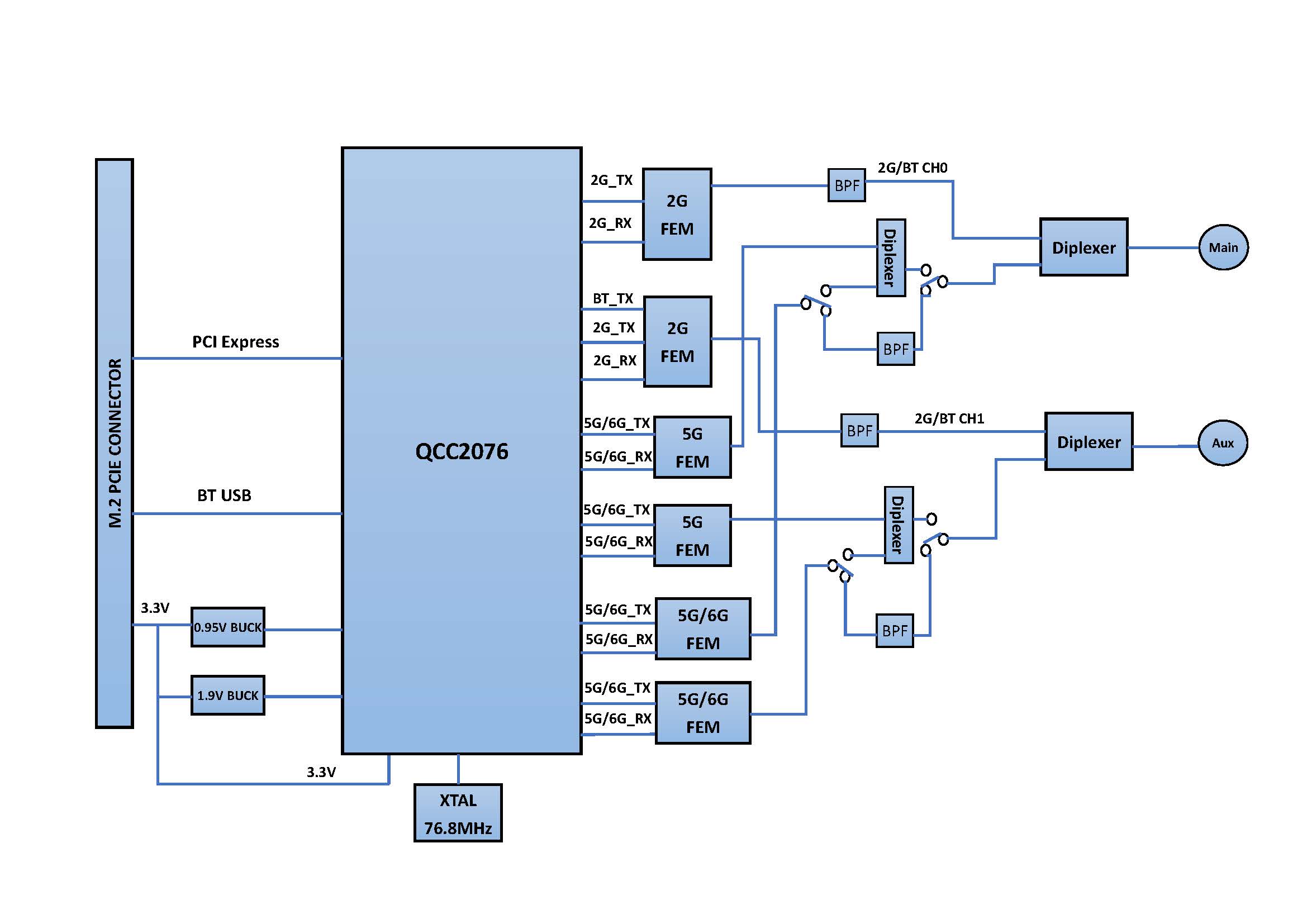

Product Overview



WNFQ-292BE,Qualcomm based WiFi-7 (802.11be) module in M.2 2230 E key formfactor, running PCIe Wifi and USB , supports DBDC (Dual-band, Dual-concurrent) mode, but with Tri-band capability (2.4GHz, 5GHz, and 6GHz). WNFQ-292BE is able to concurrently run 2.4GHz with 5GHz, or 6GHz, and support full IEEE802.11 be/ax/ac/a/b/g/n protocol, up to 160MHz mode.



WNFQ-292BE designed with 2 spatial streams (2T2R, or 2×2) in MU-MIMO mode. With a standard M.2 E key 2230 formfactor, WNFQ-292BE can accommodate to all existing platform that has M.2 Adaptor pre-integrated, no extra work with platform design.



Software wise WNFQ-292BE support Linux in the near future. The module is capable to run on both x86 platform and ARM based platform, and supports STA mode and Soft AP Mode*, recommend to run on application includes: digital signage/POS, rugged computer / tablets, fanless automation PC and other industrial environment applications that requires high speed data transmission.

Suitable Application



Applications include IPC/ Advertising machine/ OTT/ IPTV/ DVB/ STB / DV/ Mini Driving Recorder/ Intelligent Projector Pico/ VR/ AR terminal/ POS machine/ Vehicle mounted front/ Rear Terminal UAV/ Robot/ Intelligent Gateway/ Smart city and other electronic products.

Certifications



Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11be/ax/ac/a/b/g/n
Chipset Qualcomm QCC2076
Host Interface WLAN : PCIe / USB
RADIO
Antenna 2 x IPEX MHF4 connectors
Operating Frequency 802.11be/ax/ac/a/b/g/n ISM Band
2.412GHz~2.484GHz

5.150GHz~5.850GHz

5.925GHz~7.125GHz

*Subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 2048-QAM, 4096-QAM)
802.11be OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 18 dBm ≤ -87.5 dBm
11g @ 54Mbps 16 dBm ≤ -74 dBm
11gn HT20 @ MCS 7 16 dBm ≤ -73.5 dBm
11gn HT40 @ MCS 7 13.5 dBm ≤ -71 dBm
11a @ 54Mbps 15 dBm ≤ -73 dBm
11an HT20 @ MCS 7 14 dBm ≤ -72.5 dBm
11an HT40 @ MCS 7 13.5 dBm ≤ -70 dBm
11ac VHT80 @ MCS 9 12 dBm ≤ -61 dBm
11ac VHT160 @ MCS 9 12 dBm ≤ -58.5 dBm
11ax 2.4GHz
11ax HE40 @ MCS 13 11.5 dBm ≤ -52.5 dBm
11ax 5GHz
11ax HE80 @ MCS 13 11 dBm ≤ -48.5 dBm
11ax HE160 @ MCS 13 11  dBm ≤ -46 dBm
11ax 6GHz
11ax HE80 @ MCS 13 10 dBm ≤ -47.5 dBm
11ax HE160 @ MCS 13 10 dBm ≤ -45 dBm
11be 2.4GHz
11be EHT40 @ MCS 13 11.5 dBm ≤ -53 dBm
11be 5GHz
11be EHT80 @ MCS 13 11 dBm ≤ -49 dBm
11be EHT160 @ MCS 13 11 dBm ≤ -46 dBm
11be 6GHz
11be EHT80 @ MCS 13 10 dBm ≤ -48 dBm
11ax EHT160 @ MCS 13 10 dBm ≤ -45 dBm
POWER CONSUMPTION(TBD)
Continue TX 843 mA (MAX)
Continue RX 413 mA (MAX)
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range -30~ +85°C (Operating) (TBD) -40 ~ 85°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 90% (Storing)
SIZE
Dimension (MM) 30mm (±0.15mm) x 22mm (±0.15mm) x 2.15mm (±0.15mm)
Weight 2.58g
SOFTWARE
Driver (MM) Linux
Security WPS2.0, WAPI, WPA, WPA2, WPA3
Miscellaneous
Warranty 12 Month
HS Code 8517620050
