WNFQ-291BEI(BT)

802.11be/ax/ac/a/b/g/n  Industrial Capable Tri-band WiFi +Bluetooth Combo,

M.2 2230 (E KEY) Module (WiFi 7), Qualcomm, 2T2R



  • Chipset: Qualcomm WCN7851
  • Antenna: 2 x IPEX MHF4 connectors, 2T2R
  • Interface: PCIe: WLAN;USB:Bluetooth
  • Supports Dual-Band Dual Concurrent Design
  • Support: Win11/Linux (Open Source)



Categories: , Tags: , , , , ,
Share:
Enquire Here DatasheetDownload Driver

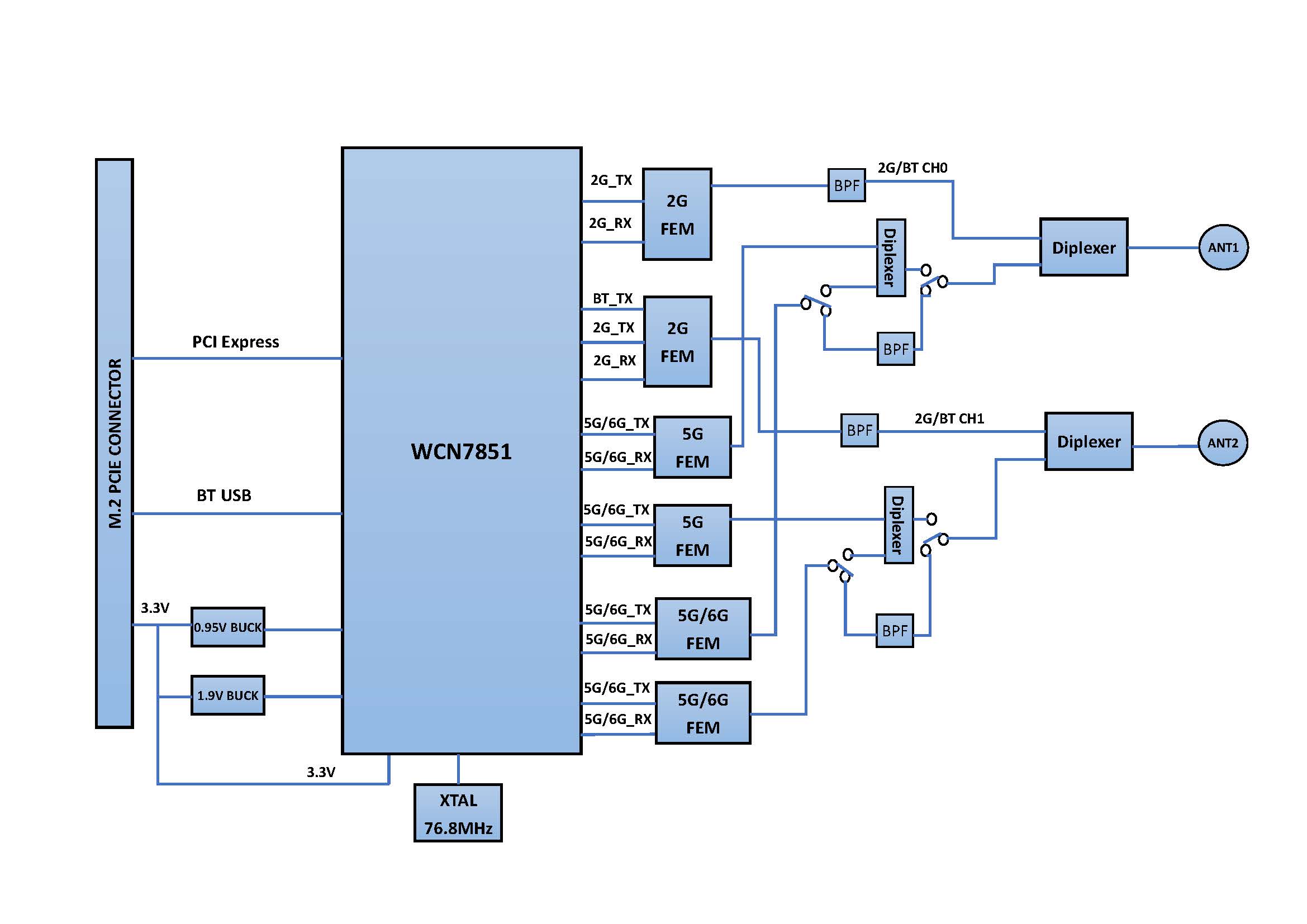

Product Overview



WNFQ-291BEI(BT), first Qualcomm based WiFi-7 (802.11be) module in M.2 2230 E key formfactor, running PCIe (Wifi) and USB(Bluetooth), supports DBDC (Dual-band, Dual-concurrent) mode, but with Tri-band capability (2.4GHz, 5GHz, and 6GHz). WNFQ-291BEI(BT) is able to concurrently run 2.4GHz with 5GHz, or 6GHz, and support full IEEE802.11 be/ax/ac/a/b/g/n protocol, up to 320MHz mode.



WNFQ-291BEI(BT) designed with 2 spatial streams (2T2R, or 2×2) in MU-MIMO mode. With a standard M.2 E key 2230 formfactor, WNFQ-291BEI(BT) can accommodate to all existing platform that has M.2 Adaptor pre-integrated, no extra work with platform design.



Software wise WNFQ-291BEI(BT) support Windows, with Linux (Open Source) in the near future. The module is capable to run on both x86 platform and ARM based platform, and supports STA mode and Soft AP Mode*, recommend to run on application includes: digital signage/POS, rugged computer / tablets, fanless automation PC and other industrial environment applications that requires high speed data transmission.

Suitable Application



Applications include IPC/ Advertising machine/ OTT/ IPTV/ DVB/ STB / DV/ Mini Driving Recorder/ Intelligent Projector Pico/ VR/ AR terminal/ POS machine/ Vehicle mounted front/ Rear Terminal UAV/ Robot/ Intelligent Gateway/ Smart city and other electronic products.

Certifications



FCC Certification Logo IC Certification Logo
USA (Planning) EU Region (Planning) Canada (Planning)

Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11be/ax/ac/a/b/g/n(2T2R)
Bluetooth V5.4,V5.3,V5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR
Chipset Qualcomm WCN7851
Host Interface WLAN : PCIe
Bluetooth:USB
RADIO
Antenna 2 x IPEX MHF4 connectors
Ant 1: WLAN/BT
Ant 2 : WLAN/BT
Operating Frequency 802.11be/ax/ac/a/b/g/n ISM Band
2.400GHz~2.4835GHz

5.150GHz~5.850GHz

5.925GHz~7.125GHz

*Subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
802.11be OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
Bluetooth Header: GFSK
Payload 2M: π/4-DQPSK
Payload 3M: 8-DPSK
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 18 dBm ≤ -89.5dBm
11g @ 54Mbps 16 dBm ≤ -76 dBm
11gn HT20 @ MCS 7 14 dBm ≤ -76 dBm
11gn HT40 @ MCS 7 13.5 dBm ≤ -74 dBm
11a @ 54Mbps 15 dBm ≤ -74 dBm
11an HT20 @ MCS 7 14 dBm ≤ -74 dBm
11an HT40 @ MCS 7 13.5 dBm ≤ -71.5 dBm
11ac VHT40 @ MCS 9 12.5 dBm ≤ -65.5 dBm
11ac VHT80 @ MCS 9 12 dBm ≤ -62 dBm
11ax 2.4GHz
11ax HE40 @ MCS 11 12.5 dBm ≤ -63 dBm
11ax 5GHz
11ax HE80 @ MCS 11 11.5 dBm ≤ -58 dBm
11ax HE160 @ MCS 11 11.5 dBm ≤ -54.5 dBm
11ax 6GHz
11ax HE80 @ MCS 11 10.5 dBm ≤ -57 dBm
11ax HE160 @ MCS 11 10.5 dBm ≤ -53.5 dBm
11be 2.4GHz
11be EHT40 @ MCS 13 11.5 dBm ≤ -57.5 dBm
11be 5GHz
11be EHT80 @ MCS 13 11 dBm ≤ -52 dBm
11be EHT160 @ MCS 13 11 dBm ≤ -49 dBm
11be 6GHz
11be EHT80 @ MCS 13 10 dBm ≤ -50.5 dBm
11ax EHT160 @ MCS 13 10 dBm ≤ -48 dBm
11be EHT320 @ MCS 13 9 dBm ≤ -45 dBm
Bluetooth Class I and Class II Device
3M bps
1M bps
2M bps		 10≤ Output Power ≤ 16 dBm
2 ≤ Output Power ≤ 8 dBm
2 ≤ Output Power ≤ 8 dBm		 BER<0.1% Typical: -97 dBm
BLE 1Mbps (PER <30.8%) Typical: -98 dBm
BLE 2Mbps (PER <30.8%) Typical: -94 dBm
POWER CONSUMPTION
Continue TX 11be: 1250 mA (MAX)
Continue RX 11be: 1200 mA (MAX)
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range -40°C~ +85°C (Operating) -45 °C~+ 90°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5~ 90% (Storing)
SIZE
Dimension (MM) 30mm (±0.15mm) x 22mm (±0.15mm) x 2.5 mm (±0.3mm)
Weight 3.42g
SOFTWARE
Driver (MM) Win 11/ Linux (Open Source)
Security WPS2.0, WAPI, WPA, WPA2, WPA3
Miscellaneous
Warranty 12 Month
HS Code 8517620050
