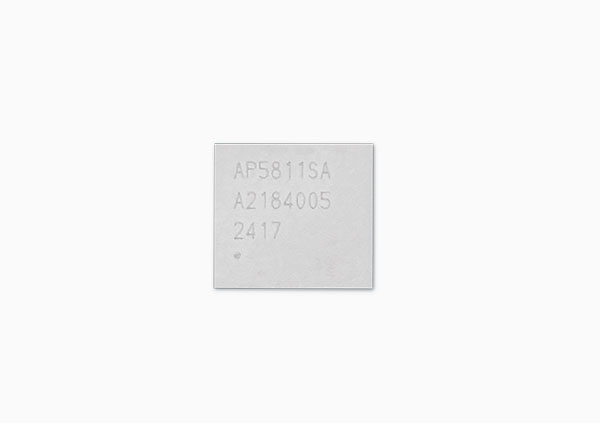

AP5811SA is a fully Wi-Fi 6E and Bluetooth Bluetooth functionalities module with seamless roaming capabilities and advance security. It is capable of associating with different vendors’ Wi-Fi 6E or legacy Access Points / Routers and run up to PHY rate of 500Mbps with single stream. Furthermore, AP5811SA included SDIO v3.0/2.0 interfaces by proper setting for Wi-Fi..
This compact module is a total solution for a combination of Wi-Fi technologies. The module is specifically developed for tablet, OTT box and portable & mobile devices.
 |
 |
||||
| ROHS | Reach |
STANDARD |
||
| WI-FI | IEEE 802.11ax/ac/a/b/g/n WiFi Module | |
| Chipset | Synaptics | |
| Host Interface | WiFi: SDIO V3.0/2.0 | |
RADIO |
||
| Antenna | External | |
| Operating Frequency | 2.4GHz ISM Band | |
| 2.400GHz~2.4835GHz
5/6GHz UNII Band 5.15~5.35GHz、5.47~5.725GHz、5.725~5.85GHz、5.955~6.415GHz *Subject to local regulations* |
||
MODULATIONS |
||
| 802.11b | DSSS (DBPSK, DQPSK, CCK) | |
| 802.11g/n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11a | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11n | OFDM (BPSK, QPSK, 16-QAM, 64-QAM) | |
| 802.11ac | OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM) | |
| 802.11ax | OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM) | |
ENVIRONMENTAL |
||
| Temperature Range | -30~ 85°C (Operating) | -40 ~ 125°C (Storing) |
| Humidity (Non-Condensing) | 10 ~ 95% (Operating) | |
SIZE |
||

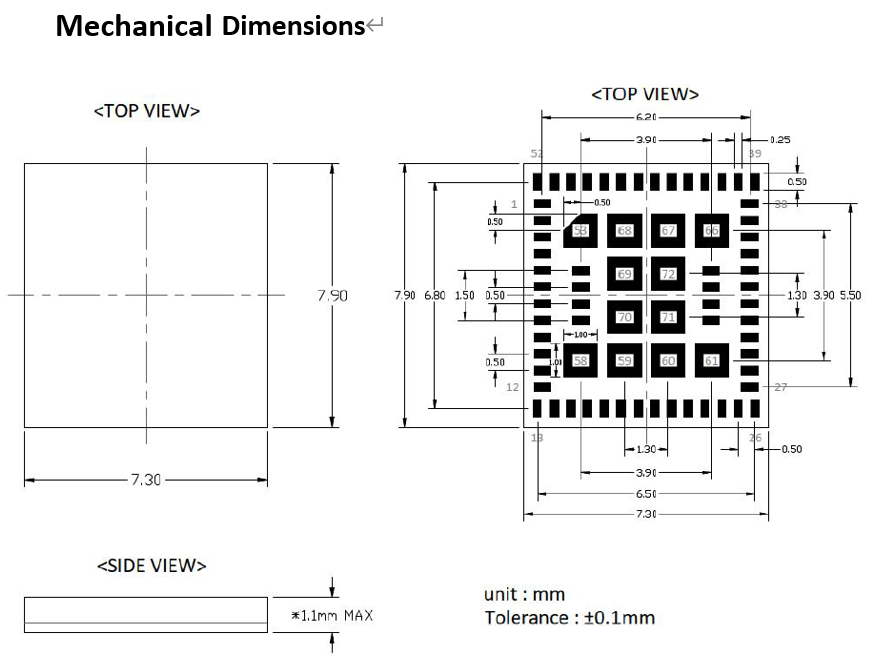

| Dimension (MM) | 7.9 x 7.3 (typical) mm x 1.1mm(Max.) | |
| Weight | 0.30g | |
SOFTWARE |
||
| Driver | Linux, Android | |
| Security | ||
Miscellaneous |
||
| Warranty Period | 12 Month | |
| HS Code | 8517620050 | |
