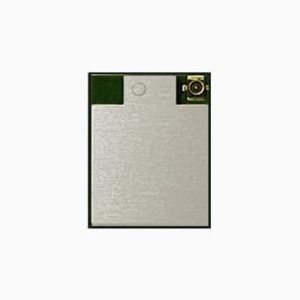

WSDB-104GNI(BT) Series

802.11b/g/n Wi-Fi Combo SDIO Module, Broadcom BCM43438, 1T1R

Standard: 802.11b/g/n
Interfaces: WLAN: SDIO 2.0
Chipset: Broadcom BCM43438
Antenna: 1 x IPEX MHF1 connector or Printed Ant., 1T1R
Operating Temperature: -40~85°C
Enhanced wireless security: 64/128-bits WEP, WPA, WPA2
Support Linux

Categories: SDIO, Stamp Type Tags: 1T1R, Industrial Grade, WiFi + BT Combo, Wifi 4

Enquire Here DatasheetDownload Driver

Product Overview

Highly integrated Wi-Fi/BT Solution

SparkLAN WSDB-104GNI(BT) is a highly integrated 1×1 802.11b/g/n Wi-Fi SDIO solution. It can support up to 150Mbps Wi-Fi throughput.

Intelligent connectivity platform for the IOT

WSDB-104GNI(BT) embedded with Broadcom BCM43438 chipset, is a cost and power efficient solution, provides SDIO interface for Wi-Fi to connect with host processor. WSDB-104GNI(BT) is able to function under server weather condition(-40~85°C), which is ideal for manufacturers to integrate with their devices that are designed for extended temperature range.

Secure Wireless Connection

This SDIO module WSDB-104GNI(BT) with advanced security encryption, such as 64/128-bit WEP, WPA and WPA2, it helps prevent from malicious attacks.

Suitable Application

Industrial PC	In Vehicle PC
In Vehicle Router	Outdoor IPTV
Vehicle mounted front	Rear Terminal UAV
Robot	Intelligent Gateway

Certifications


USA	EU Region	Canada

Environmental Compliance


ROHS	Reach

Specification

STANDARD
WI-FI	802.11b/g/n
Chipset	Broadcom BCM43438
Host Interface	WLAN: SDIO 2.0

RADIO
Antenna	1 x IPEX MHF1 connector or Printed Ant.
Operating Frequency	802.11b/g/n
	2.400GHz~2.4835GHz Subject to local regulations

MODULATIONS
802.11b	DSSS (DBPSK, DQPSK, CCK)
802.11g/n	OFDM (BPSK, QPSK, 16-QAM, 64-QAM)

POWER & SENSITIVITY
802.11	Power – TX (± 2dBm)	Sensitivity – RX
11b @ 11Mbps	17dBm	≤ -76dBm
11g @ 54Mbps	15dBm	≤ -65dBm
11n HT20 @ MCS 7	13dBm	≤ -64dBm

POWER CONSUMPTION
Continue TX	280mA
Contibue RX	60mA

ENVIRONMENTAL
Operating Voltage	DC 1.8V or 3.3V
Temperature Range	-40~ 85°C (Operating)	-50 ~ 90°C (Storing)
Humidity (Non-Condensing)	5 ~ 90% (Operating)	5 ~ 95% (Storing)

SIZE
Dimension (MM)	19mm(±0.15mm) x 12mm(±0.15mm) x 2mm(±0.15mm)
Weight	0.65g

SOFTWARE
Driver	Linux
Security	64/128-bits WEP, WPA, WPA2
