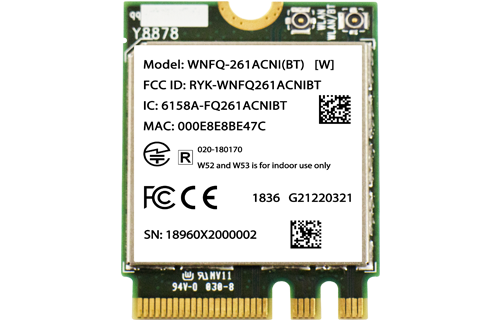

SparkLAN Launches WNFQ-261ACNI(BT) & WPEQ-261ACNI(BT) 802.11ac M.2 2230 /Half Mini PCI-e Module

Industrial WiFi / BT Module for Automation / Robotic

Industrial Grade 802.11ac/a/b/g/n 2T2R Wi-Fi / BT 4.2 Combo M.2 2230 / Half Mini PCI-e Module

SparkLAN will release the newest 11ac Industrial-Grade combo card. It supports Windows and Linux Drivers solution. WNFQ-261ACNI(BT) and WPEQ-261ACNI(BT) are using a QCA6174A-5 along with Windows and Linux driver which provide excellent solution for Vehicle mounted front / STB / Automation / Robot, etc. various applications. Adopting the latest 802.11ac solution.



WNFQ-261ACNI(BT) /WPEQ-261ACNI(BT) is ideal for next-generation high throughput enterprise networking and Industrial-graded (-40°C ~ +85°C) solution. Incorporated with advanced security encryption, such as WEP, WPA, WPA2 and 802.1x, it helps prevent user’s devices from malicious attacks.



WNFQ-261ACNI(BT) / WPEQ-261ACNI(BT) is an 802.11ac/a/b/g/n Dual-Band Wi-Fi / BT combo module based on Qualcomm QCA6174A-5 chipset. This highly integrated module supports most of WLAN capabilities with seamless roaming and advanced security for enterprise application. The wireless module complies with IEEE 802.11 a/b/g/n/ac 2×2 MIMO. The BT Supports BT 4.2 + HS, BLE and is backwards compatible with BT 1.X, 2.X Enhanced Data Rate. The integrated module provides PCIE Interface for Wi-Fi and USB interface for BT. The download speed are 300Mbps on N networks and 867Mbps on AC network.



SparkLAN provides leading wireless technology with unmatched support around the world. We have certified WNFQ-261ACNI(BT) / WPEQ-261ACNI (BT) for FCC/CE/IC/MIC to reduce testing costs for our customers. We provide driver support for operating systems such as Linux and Windows. To further expedite the product development process, SparkLAN also provides additional services including custom driver, certification services.

Key Features

  • Operating Temperature Range: -40°C to +85°C
  • Chipset: Qualcomm QCA6174A-5
  • Support Multiple Drivers: Windows 7/8.1/10, Linux
  • Supports low power PCIe (w/L1 substate) interfaces for WLAN and USB1.1 interface for BT
  • Compatible for 5 GHz 802.11ac, or 2.4/5 GHz 802.11n WLAN applications
  • Highly integrated wireless local area network (WLAN)
  • Type of form factor : M.2 2230 or Half Mini PCIe
