WiFi / BT Module for Industrial Application

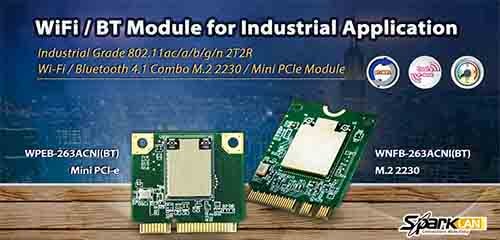

SparkLAN is release the newest 11ac M.2 and Half Mini PCI-e combo card. WNFB-263ACNI(BT) and WPEB-263ACNI(BT) are a complete 802.11ac/abgn dual band 2T2R Industrial Grade (-40°C to +85°C) WiFi / BT 4.1 combo with low power consumption module. This module is a highly integrated wireless local area network (WLAN) and BT solution for high speed wireless connectivity. It is fully compliant to BT 4.1 and v2.1 and supports EDR of 2Mbps and 3Mbps for data and audio communication. It is used for high performance, cost effective, low power consumption solution for industrial application.

It can achieve up to a speed of 867Mbps with dual stream in 802.11acn wireless LAN, in addition, all the rates specified in IEEE 802.11a/b/g/n are supported. The integrated module provides PCI-e interface for Wireless LAN & USB interface for BT.

WNFB-263ACNI(BT) / WPEB-263ACNI(BT) implements highly sophisticated enhanced collaborative coexistence hardware mechanisms and algorithms that ensure that WLAN / BT collaboration is optimized for maximum performance.

WNFB-263ACNI(BT) / WPEB-263ACNI(BT) is designed for various applications including IPC/ Advertising machine/ Tablets/ Smart devices/ STB / Intelligent Projector Pico/ VR/ AR terminal/ POS machine/ Vehicle mounted front/ Rear Terminal UAV/ Robot/ Intelligent Gateway/ Smart city and other electronic products.

SparkLAN provides leading wireless technology with unmatched support around the world. We have certified the WNFB-263ACNI(BT) / WPEB-263ACNI(BT) for FCC/CE/IC to reduce testing costs for our customers. We provide driver support for operating systems such as Linux, Android and Windows. To further expedite the product development process, SparkLAN also provides additional services including custom driver, certification services.

Key Features

• 802.11ac/a/b/g/n dual band 2Tx2R WLAN & BT combo module
• Operating Temperature Range: -40°C to +85°C
• Support Multiple Drivers (Android/ Windows 10/ Linux)
• Support BT 4.1 compliant with BT 3.0, BT2.1+EDR and Low Energy (BLE)
• Dual-stream spatial multiplexing up to 867 Mbps data rate

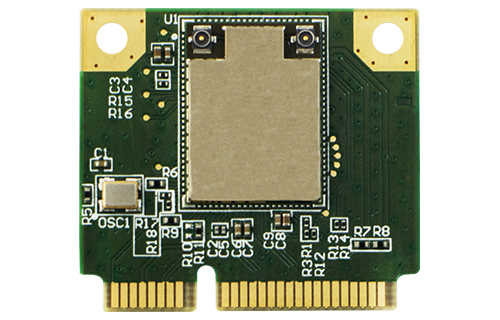

• Type of form factor: M.2 2230 or Half Mini PCI-e
