WNFQ-269AX(BT)

802.11ax/ac/a/b/g/n  Tri-band WiFi +BT 5.2 Combo,  M.2 2230

(E KEY) Module (WiFi 6/6E), Qualcomm, 2T2R



  • Chipset: Qualcomm Atheros WCN6856
  • Antenna: 2 x IPEX MHF4 connectors, 2T2R
  • Interface: PCIe: WLAN ; USB: Bluetooth
  • Supports Dual-Band Dual Concurrent Design
  • Support: Windows 11, Linux (Open Source)



Categories: , Tags: , , , ,
Share:
Enquire Here DatasheetDownload Driver

Product Overview



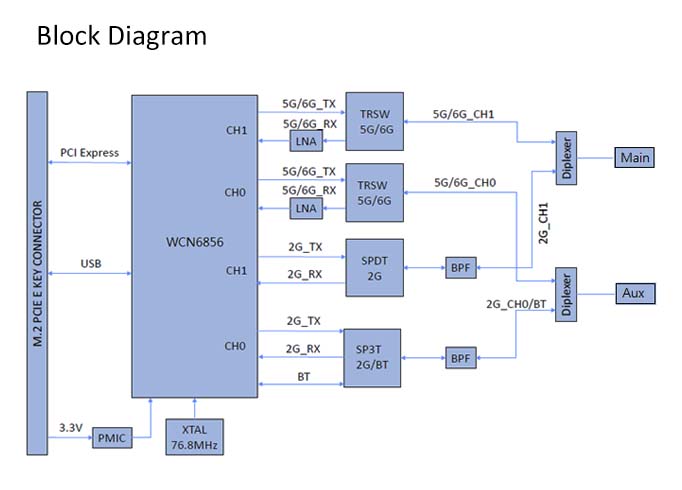

WNFQ-269AX(BT), first Qualcomm based WiFi-6E (802.11ax) module in M.2 2230 E key formfactor, running PCIe (Wifi) and USB (Bluetooth), supports DBDC (Dual-band, Dual-concurrent) mode, but with Tri-band capability (2.4GHz, 5GHz, and 6GHz). WNFQ-269AX(BT) is able to concurrently run 2.4GHz with 5GHz, or 6GHz, and support full IEEE802.11 ax/ac/a/b/g/n protocol, up to 160MHz mode.



WNFQ-269AX(BT) designed with 2 spatial streams (2T2R, or 2×2) in MU-MIMO mode. With a standard M.2 E key 2230 formfactor, WNFQ-269AX(BT) can accommodate to all existing platform that has M.2 Adaptor pre-integrated, no extra work with platform design.



Software wise WNFQ-269AX(BT) support Windows, with Linux (Open Source) in the near future. The module is capable to run on both x86 platform and ARM based platform, and supports STA mode and Soft AP Mode*, recommend to run on application includes: digital signage/POS, rugged computer / tablets, fanless automation PC and other industrial environment applications that requires high speed data transmission

Suitable Application



  • Industrial PC
  • Vehicle mounted front
  • Advertising machine
  • Outdoor IPTV
  • Vehicle mounted front
  • Rear Terminal UAV
  • Robot
  • POS machine
  • OTT/ IPTV/ DVB/ STB / DV
  • Mini Driving Recorder
  •  Intelligent Projector Pico
  • VR/ AR terminal
  •  Smart city
  • Intelligent Gateway

Certifications



NCC Certification Logo
USA EU Region Japan Canada Taiwan

Environmental Compliance



ROHS Compliant
ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11ax/ac/a/b/g/n
Bluetooth Bluetooth V5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR
Chipset Qualcomm Atheros WCN6856
Host Interface WLAN : PCIe

Bluetooth : USB
RADIO
Antenna 2 x IPEX MHF4 connectors
Operating Frequency 802.11ax/ac/a/b/g/n ISM Band
2.412GHz~2.484GHz

5.150GHz~5.850GHz

5.925GHz~7.125GHz

* Subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM,2048-QAM,4096-QAM)
Bluetooth Header: GFSK
Payload 2M: π/4-DQPSK
Payload 3M: 8-DPSK
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 18 dBm ≤ -88.5 dBm
11g @ 54Mbps 14.5 dBm ≤ -75.5 dBm
11gn HT20 @ MCS 7 16 dBm ≤ -75 dBm
11gn HT40 @ MCS 7 13.5 dBm ≤ -72.5 dBm
11a @ 54Mbps 14 dBm ≤ -77 dBm
11an HT20 @ MCS 7 13.5 dBm ≤ -77 dBm
11an HT40 @ MCS 7 13 dBm ≤ -74 dBm
11ac VHT80 @ MCS 9 12.5 dBm ≤ -65 dBm
11ac VHT160 @ MCS 9 11 dBm ≤ -61 dBm
11ax 2.4GHz
11ax HE40 @ MCS11 13 dBm ≤ -60 dBm
11ax 5GHz
11ax HE80 @ MCS11 11 dBm ≤ -58.5 dBm
11ax HE160 @ MCS11 9 dBm ≤ -56 dBm
11ax 6GHz
11ax HE80 @ MCS11 9 dBm ≤ -57 dBm
11ax HE160 @ MCS11 8.5 dBm ≤ -54.5 dBm
Bluetooth
3Mbps 0 ≦Output Power ≦14dBm <0.1% BER at -70dBm
POWER CONSUMPTION
Continue TX 783mA (Average)
Continue RX 362 mA (Average)
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range -30°C~+70°C (Operating) -40°C ~ +85°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 90% (Storing)
SIZE
Dimension (MM) 30mm (±0.15mm) x 22mm (±0.15mm) x 2.15mm (±0.3mm)
Weight 2.53g
SOFTWARE
Driver Windows 10,11
Linux (Open Source)
Security 64/128-bits WEP, WPA, WPA2, WPA3, WPS, 802.1x
Miscellaneous
Warranty 12 Month
HS Code 8517620050
