SparkLAN’s Wi-Fi 6 & BLE SiP Module with TI Tech

SparkLAN’s Wi-Fi 6 & BLE SiP Module with TI Tech

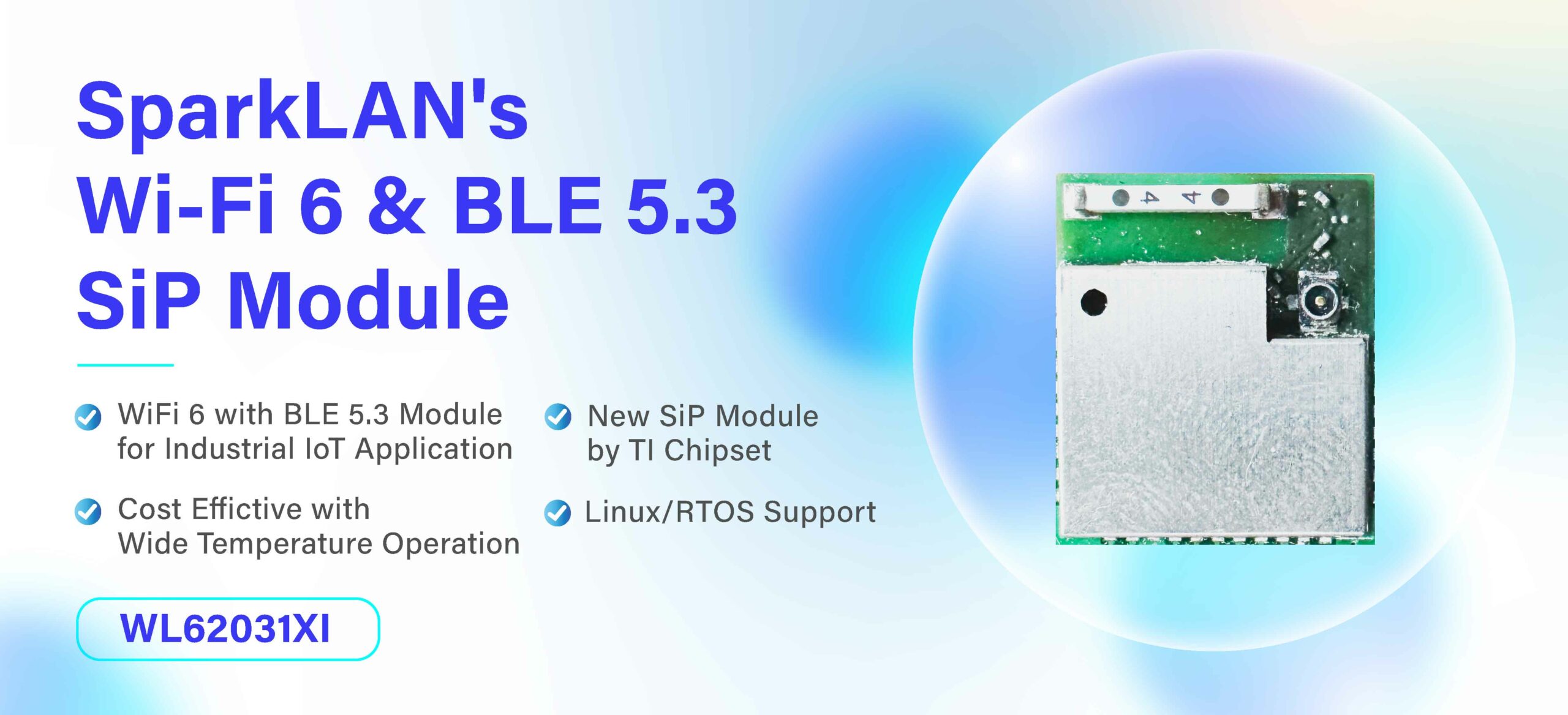

SparkLAN has launched WL62031XI SiP (System-in-Package) module, which is a low cost, compact, and highly integrated product that combines TI SimpleLink™ WiFi 6 and Bluetooth® Low Energy companion ICs to enable the coexistence of WiFi and BLE with TI power-saving technologies, providing excellent performance, and it is beneficial for simplifying the design.

☑️ Affordable and Flexible Connectivity Solution

The WL62031XI module supports WiFi 6 2.4G and Bluetooth 5.3 Low Energy. It connects to the host processor via SDIO for WiFi and UART for Bluetooth. With Linux drivers available, seamless integration with application processors is ensured. Ideal for cost sensitive embedded systems, particularly those operating on Linux or RTOS hosts with TCP/IP support.

☑️ Efficient Wireless Data Module

The module with MAC addresses, baseband, and RF transceivers, offering speeds up to 50 Mbps. It supports various roles, like STA and AP, allowing direct connections to WiFi devices on different RF channels. With dimensions of 15 x 13 mm and an operating temperature range of -40 to +85°C, it’s adaptable to different environments, providing exceptional performance and flexibility.

☑️ Multi-Field Connectivity: WL62031XI for IoT & IIoT

The highly integrated WL62031XI module can be widely applied in various fields, including home automation, healthcare, industrial sports and fitness, and grid infrastructure, meeting the diverse requirements of the emerging Internet of Things (IoT & IIoT). To accommodate the needs of different host processors, the host interface design is robust and provides rich array of configuration options.


Product Description 802.11ax/ac/a/b/g/n 1×1 WiFi with BLE 5.3 Combo Sip Module
Chipset Texas Instruments
Interface WLAN: SDIO 3.0 / 2.0 ;  Bluetooth: UART
Temperature Range -40~ 85°C (Operating)
Dimension (MM) 15 x 13(typical) mm x H: 2.0 mm±0.15mm(Max.)
Driver Support Linux, Free RTOS

Use in IoT Applications

Consistent RF Performance

and Reliable Connection



-40°C~ 85°C

Ease of Design

for Integration

Supports STA Mode
and Soft AP Mode
WPA3 Security
of Information

WL62031XI  Key Highlight

● Home Automation
● Lighting Control

● Building Security Gateway
● Garage door system
● IP network camera

● Patient monitoring and diagnostics
● Medical equipment

● Household appliances
● Service robot

● Retail Automation and Payment
● Factory automation
● Grid Infrastructure
● Energy Storage Power Conversion System
