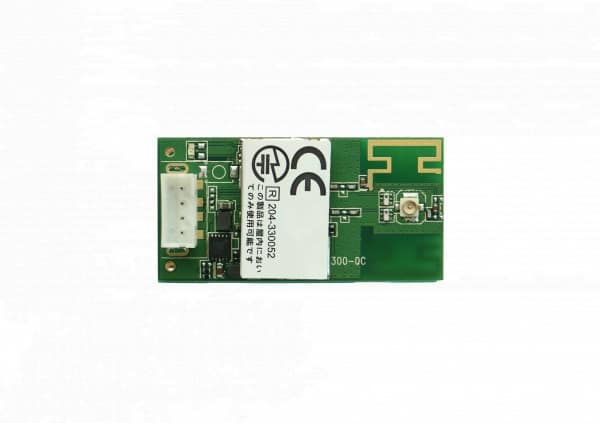

WUBR-508N Series

802.11a/b/g/n USB Module, Ralink RT5572, 2T2R (USB 2.0 Type A, 4-Pin, or 4-Pin Wafer connector)



  • Chipset: Ralink RT5572
  • Antenna: PCB Printed Ant. or 2xU.FL connectors,2T2R
  • Form Factor: 3 Variations, see below
  • Interface: USB
  • Output Power up to 17dBm
  • Support: Windows XP/Vista/7,Linux



*Not recommended for new design



Suggest replacement: WUBT-239ACN(BT) Series



Category: Tags: , ,
Share:
Enquire Here DatasheetDownload Driver

Product Overview



Latest 802.11n Wi-Fi Technology

SparkLAN WUBR-508N Module Series, embedded with Ralink RT5572 chipset, is an 802.11n Wi-Fi USB module. With advanced 2T2R MIMO technology, WUBR-508N Module Series delivers ultimate wireless data rate for up to 300Mbps. It is designed for any wireless enabled device with standard USB 2.0 Type A connector, 4-Pin connector, or 4-Pin Wafer connector. Customer can also choose either printed or U.FL antenna based on individual’s requirements. With the possibilities of different combinations of the host interface and antenna, the manufactures or designers have a variety of choices with higher flexibility to their needs.



Secure Wireless Connection

Incorporated with advanced security encryption, such as 64/128-bits WEP, WPA, WPA2, and 802.1x, it helps prevent users’ devices from malicious attacks. *W52 band for TELEC only

Suitable Application



  • Industrial PC
  • In Vehicle PC
  • In Vehicle Router
  • Outdoor IPTV
  • Vehicle mounted front
  • Rear Terminal UAV
  • Robot
  • Intelligent Gateway

Multiple Variations Available



WUBR-508N is designed with multiple product skus to fit is all platforms. Here are all the skus for this USB module:



Sku Part Name Specification
WUBR-508N(M4) 4 Pin & U.FL Connector
WUBR-508N(M4W) 4 Pin Wafer & U.FL Connector
WUBR-508N(MU)  USB Type A & U.FL Connector
WUBR-508N(P4) 4 Pin & Printed Antenna
WUBR-508N(P4W) 4 Pin Wafer & Printed Antenna
WUBR-508N(PU) USB Type A & Printed Antenna
WUBR-508N USB Dongle

Certifications



USA EU Region Japan Canada Brazil India

Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11a/b/g/n
Chipset Ralink RT5572
Host Interface
 WLAN: USB
RADIO
Antenna 2 x IPEX MHF1 connectors or Printed Ant.
Operating Frequency 802.11a/b/g/n ISM Band
2.400GHz~2.4835GHz

5.150GHz~5.825GHz

*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 17dBm ≤ -88dBm
11g @ 54Mbps 15dBm ≤ -74dBm
11gn HT20 @ MCS 7 13dBm ≤ -72dBm
11gn HT40 @ MCS 7 13dBm ≤ -69dBm
11a @ 54Mbps 13dBm ≤ -71dBm
11an HT20 @ MCS 7 12dBm ≤ -71dBm
11an HT40 @ MCS 7 12dBm ≤ -71dBm
POWER CONSUMPTION
Continue TX 450mA(Max.)@2TX
Continue RX 175mA(Max.)@2RX
OPERATING VOLTAGE
Operating Voltage DC 5V
Temperature Range 0~ 50°C (Operating) -10 ~ 70°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)

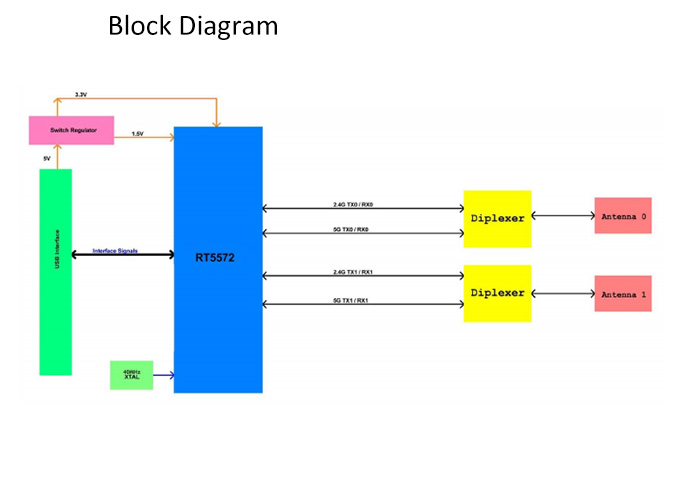

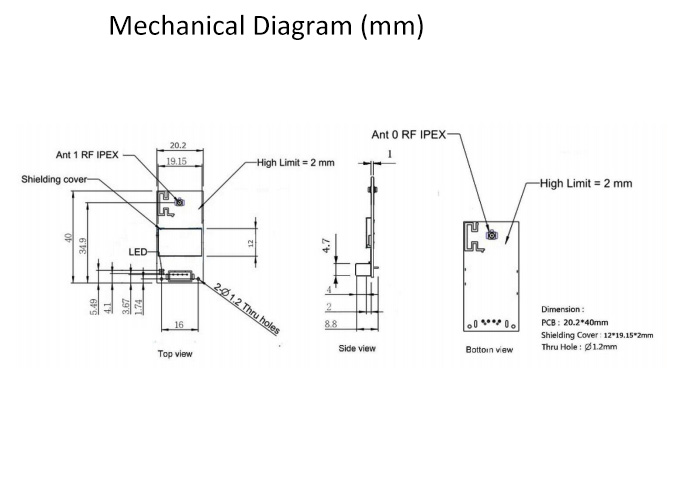

SIZE
Dimension (MM) [M4W]/[M4]/[P4W]/[P4]: 40mm(±0.3mm) x 20.2mm(±0.3mm) x 8.8mm(±0.3mm)
[MU]/[PU]: 55mm(±0.3mm) x 20.2mm(±0.3mm) x 4mm(±0.3mm)
Weight [M4W]/[M4]/[P4W]/[P4]: 3.5g
[MU]/[PU]: 5.2g
SOFTWARE
Driver WinXP/Vista/7
Linux,
Android by request
Security 64/128-bits WEP, WPA, WPA2, 802.1x
