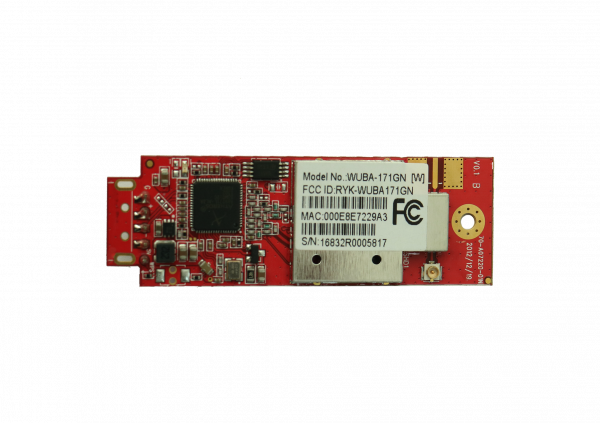

WUBA-171GN

802.11b/g/n High-Power USB Module, Atheros AR9271, 1T1R



  • Chipset: Atheros AR9271
  • Antenna: 1 x U.FL connector, 1T1R
  • Interface: USB 2.0 5-Pin connector
  • Output Power up to 23dBm
  • Support WindowsXP/Vista/7, Linux
Category: Tags: , ,
Share:
Enquire Here

Product Overview



SparkLAN WUBA-171GN, embedded with Atheros AR9271 chipset, is an 802.11n high power WiFi USB module. With 1T1R technology, the wireless 11n USB module delivers ultimate wireless data rate for up to 150Mbps. It is designed for any wireless enabled device with standard USB 2.0 5-pin pin header.



WUBA-171GN achieves high output for up to 23dBm. In addition, it is able to function under sever weather condition, which is ideal for manufacturers to integrate with their devices that are designed for wide-temperature range.



WUBA-171GN also features advanced WEP encryption, WPA, and WPA2 to help to protect data over wireless communication without sacrificing the performance.

Suitable Application



Not recommend for new design

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11b/g/n
Chipset Atheros AR9271
Host Interface USB 2.0 5-Pin connector
RADIO
Antenna 1 x U.FL connector, 1T1R
Operating Frequency 802.11g ISM Band
2.412 ~ 2.472GHz

*Subject to local regulations*

MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY
802.11 Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 23dBm ≤ -90dBm
11g @ 54Mbps 21dBm ≤ -75dBm
11gn HT20 @ MCS 7 21dBm ≤ -72dBm
11gn HT40 @ MCS 7 21dBm ≤ -68dBm
POWER CONSUMPTION
Continue TX 650mA
Contibue RX 300mA
OPERATING VOLTAGE
Operating Voltage DC 5V ± 5%
Temperature Range -30~ 75°C (Operating) -40 ~ 80°C (Storing)
Humidity (Non-Condensing) 10 ~ 90% (Operating) 10 ~ 90% (Storing)
SIZE
Dimension (MM) 65 x 20.9 x 11.6
Weight <10g
SOFTWARE
Driver WindowsXP/Vista/7
Linux
Security 64/128-bits WEP, WPA, WPA2
