EOL

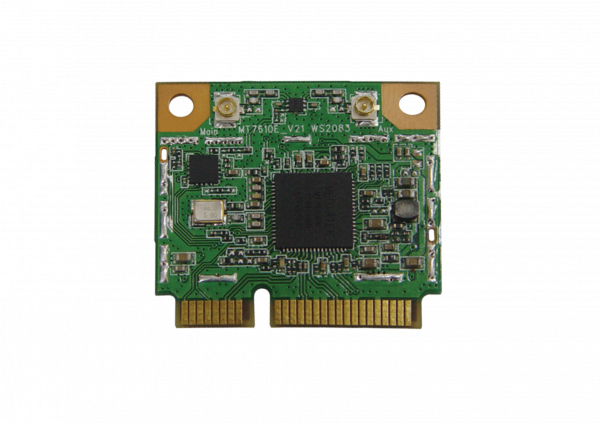

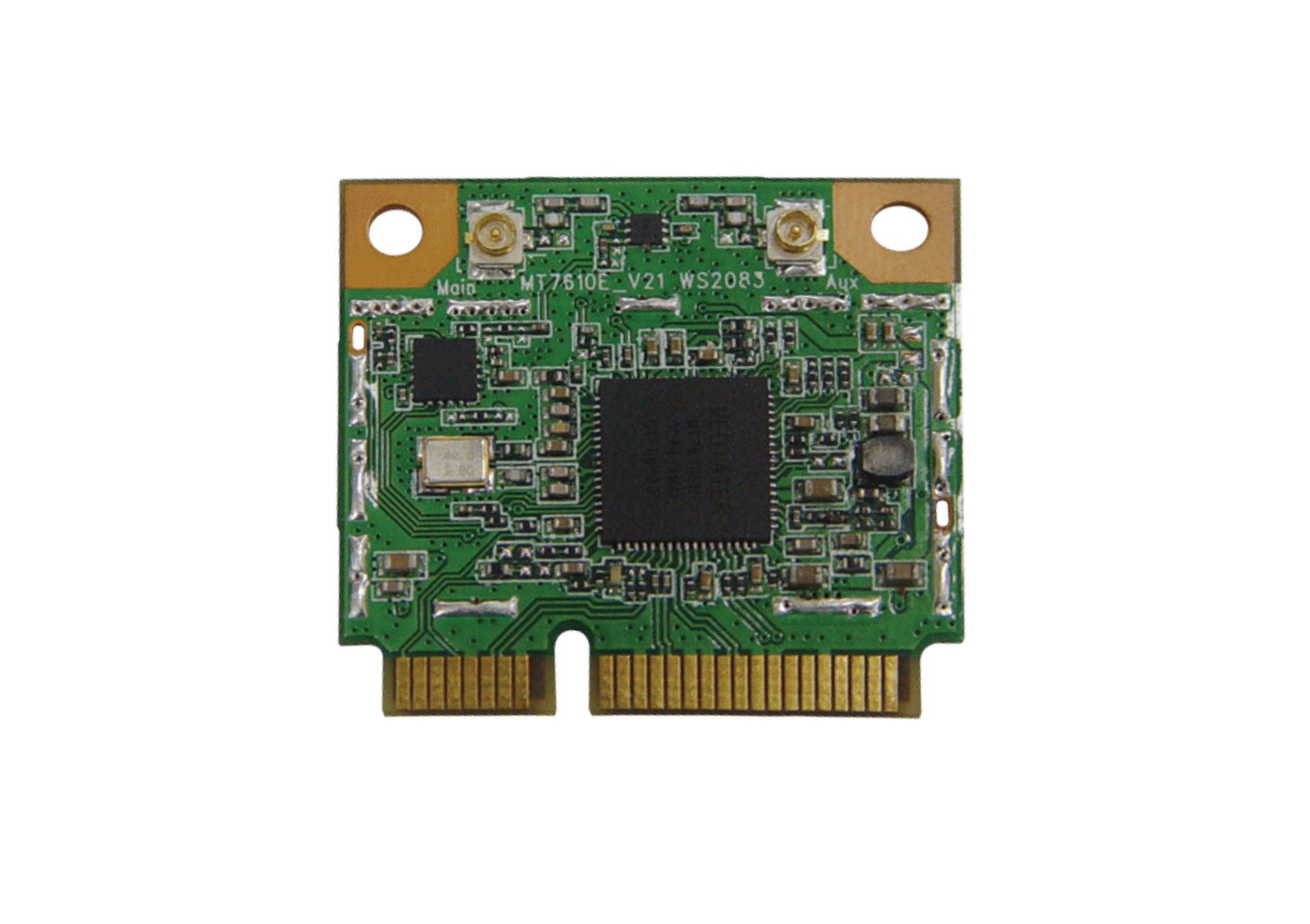

WPER-176AC

802.11ac/a/n Mini PCIe Module (WiFi 5), MediaTek MT7610E, 1T1R

  • Standard: 802.11ac/a/n
  • Interface: PCI Express
  • Chipset: MediaTek MT7610E
  • Antenna: 2 x U.FL connectors (diversity antenna), 1T1R
  • Data rate up to 433Mbps (MCS9)
  • Enhanced wireless security: 64/128-bits WEP, WPA, WPA2, 802.1x, WAPI
  • Support Linux, Android by request

*Not recommended for new design

Category: Tags: , ,
Share:
Enquire Here

Product Overview



802.11ac Single-Band Solution
SparkLAN WPER-176AC is an 802.11ac/a/n 5GHz Single-Band Mini PCI express module (WiFi 5) based on MediaTek MT7610E chipset. It supports 1T1R (1×1) technology, which runs up to 433Mbps (MSC9). The WPER-176AC supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency.



Higher throughput for Enterprise Networking
Adopting the latest WiFi 5 solution, WPER-176AC is ideal for next-generation high throughput enterprise networking solution.



Secure Wireless Connection
Incorporated with advanced security encryption, such as 64/128-bits WEP, WPA, WPA2, 802.1x, and WAPI, it helps prevent users’ devices from malicious attacks.

Suitable Application



Not recommend for new design

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11ac/a/n
Chipset Mac/BB/RF

MediaTek MT7610E
Host Interface
 PCI Express
RADIO
Antenna 2 x U.FL connectors (diversity antenna)
Operating Frequency 802.11a ISM Band: 5.150 ~ 5.850GHz
*subject to local regulations
MODULATIONS
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
POWER & SENSITIVITY
802.11 Power – TX (± 2dBm) Sensitivity – RX
11a @ 54Mbps 13dBm ≤ -71dBm
11an HT20 @ MCS7 13dBm ≤ -64dBm
11an HT40 @ MCS7 13dBm ≤ -61dBm
11ac HT20 @ MCS 9 12dBm ≤ -57dBm
11ac HT40 @ MCS 9 12dBm ≤ -54dBm
11ac VHT80 @ MCS 9 12dBm ≤ -51dBm
POWER CONSUMPTION
Continue TX 550mA
Contibue RX 350mA
OPERATING VOLTAGE
Operating Voltage DC 3.3V ± 10% I/O supply voltage
Temperature Range 0~ 40°C (Operating) -20 ~ 70°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
SIZE
Dimension (MM) 30.00mm x 26.8mm x 4.00mm
Weight TBD
SOFTWARE
Driver Linux
Security 64/128-bits WEP, WPA, WPA2, 802.1x, WAPI
