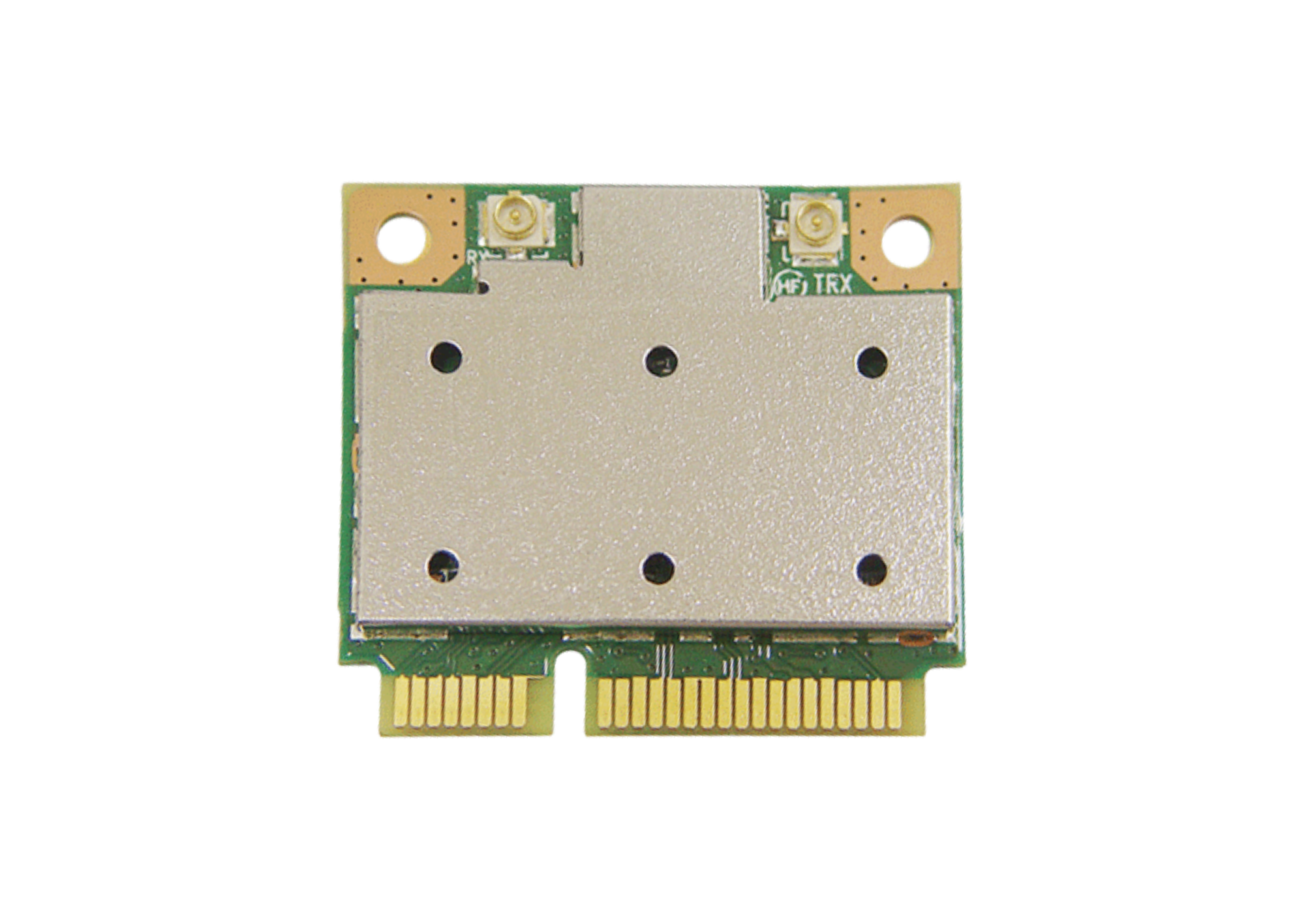

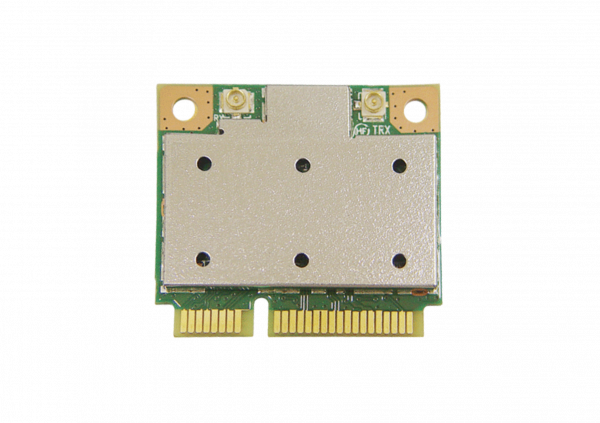

WPEA-156GN

802.11b/g/n Half Mini PCIe Module, Atheros AR9485, 1T1R

  • Standard: 802.11b/g/n
  • Host interface: Mini PCI-E
  • Chipset: Atheros AR9485
  • Antenna: 2 x U.FL connectors, 1T1R
  • Data rate up to 150Mbps
  • Enhanced wireless security: WEP, WPA, WPA2, WPS
  • Support Windows XP/ Vista, Win 7, Linux, Android by request

*Not recommended for new design

Category: Tags: , ,
Share:
Enquire Here

Product Overview



Cost-Effective Low-Power Consumption Solution

SparkLAN WPEA-156GN is an 802.11n Single-Band Half PCI Mini Card based on Atheros AR9485 chipset. This wireless Mini PCI express runs up to 150Mbps, targeting at the growing computing products marketing with 150Mbps rate. By incorporating Atheros Align Technology, it improves the throughput, enhances Wi-Fi coverage, and extends battery life.



Support Wi-Fi Direct

Atheros AR9485 chipset uses Atheros Direct Connect peer-to-peer technology, which enables your device that is embedded with WPEA-156GN to easily connect with other Wi-Fi enabled devices or peripherals.

Suitable Application



Not recommend for new design

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11b/g/n
Chipset Atheros AR9485
Host Interface Half PCI Express
RADIO
Antenna 2 x U.FL connectors, 1T1R
Operating Frequency 802.11g ISM Band: 2.400 ~ 2.4835GHz
*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY
802.11 Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 17dBm ≤ -85dBm
11g @ 54Mbps 13dBm ≤ -70dBm
11gn HT20 @ MCS 7 11dBm ≤ -68dBm
11gn HT40 @ MCS 7 11dBm ≤ -65dBm
POWER CONSUMPTION
Continue TX 310mA
Contibue RX 180mA
OPERATING VOLTAGE
Operating Voltage DC 3.3V ± 10%
Temperature Range 0~ 75°C (Operating) -40 ~ 80°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
SIZE
Dimension (MM) 30.00mm x 26.80mm x 3.2mm
Weight ≤ 3.5g
SOFTWARE
Driver Windows XP/ Vista, Win 7, Linux
Security WEP, WPA, WPA2, WPS
