EOL

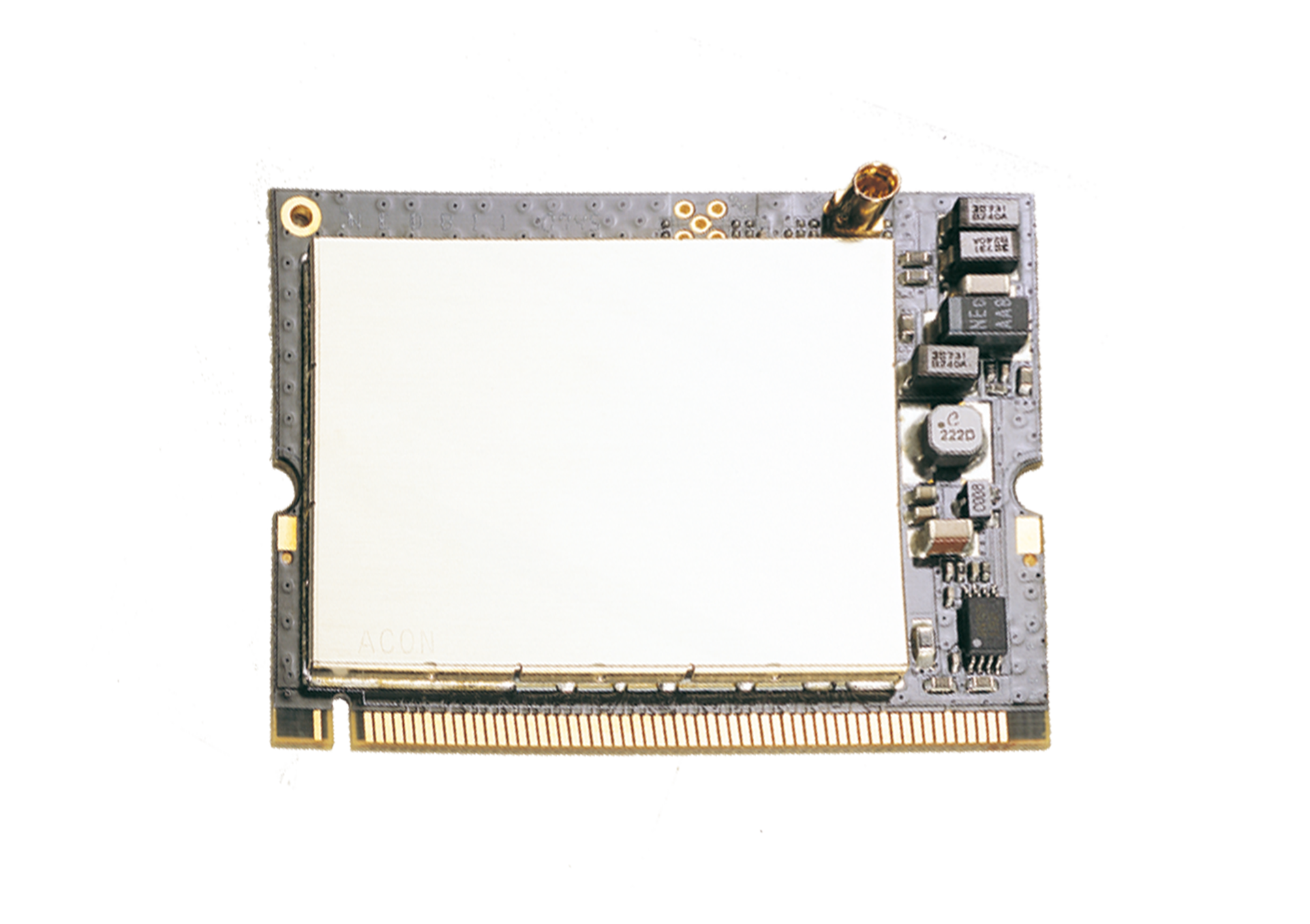

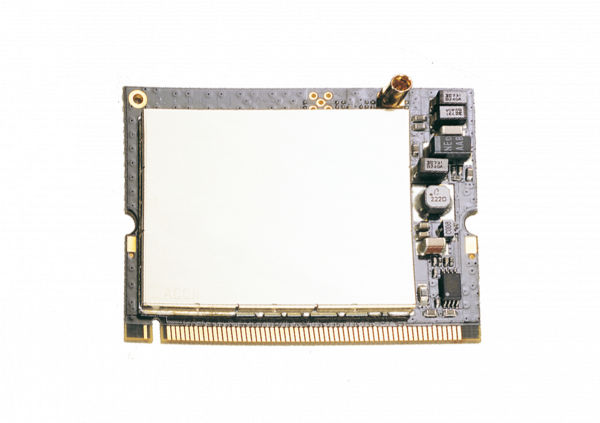

WMIA-166AGH

802.11a/b/g High Power Mini PCI Module, Atheros AR5414, 400mW, 1T1R

  • Standard: 802.11a/b/g
  • Interface: Mini PCI Type III B
  • Chipset: Atheros AR5414 + AR5006XS
  • Antenna: 1 x MMCX connectors, 1T1R
  • Enhanced wireless security: 64/128/152-bit WEP, WPA, WPA2, Encryption TKIP/AES, 802.1x,LEAP
  • Support Windows 2000/ XP/ Vista, Linux

*Not recommended for new design

Category: Tags: ,
Share:
Enquire Here

Product Overview



Reliable High-Power Embedded Application

SparkLAN WMIA-166AGH is a high power 802.11a/b/g Mini PCI module with Atheros AR5414 + AR5006XS chipsets. With the MMCX connector provided, WMIA-166AGH is the ideal solution for enabling wireless connection to devices, such as networking equipments, industrial computers, or automation machines.



Secure Wireless Connection

By advanced WPA security protocol and WEP encryption, without diluting the performance, WMIA-166AGH secure wireless computer networks and protect your own data while transit.

Suitable Application



Not recommend for new design

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11a/b/g
Chipset Atheros AR5414 + AR5006XS
Host Interface
 Mini PCI, Type III B
RADIO
Antenna 1 x MMCX connectors, 1T1R
Operating Frequency 802.11b/g: 2.412 ~ 2.472GHz

802.11a: 5.150 ~ 5.350GHz, 5.470 ~ 5.850GHz

*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11a/g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY
802.11 Power – TX (± 1.5dBm) Sensitivity – RX (± 1.5dBm)
11a @ 54Mbps 18dBm ≤ -68dBm
11b @ 11Mbps 24dBm ≤ -87dBm
11g @ 54Mbps 21dBm ≤ -72dBm
POWER CONSUMPTION
Continue TX Max. 1200mA
Contibue RX Max. 450mA
OPERATING VOLTAGE
Operating Voltage DC 3.3V ± 5%
Temperature Range -20 ~ 65°C (Operating) -30 ~ 75°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storage)
SIZE
Dimension (MM) 60.0mm x 45.0mm x 5.5mm
Weight < 50g
SOFTWARE
Driver Windows 2000/ XP/ Vista
Linux
Security 64/128/152-bit WEP, WPA, WPA2, Encryption TKIP/AES, 802.1x, LEAP
