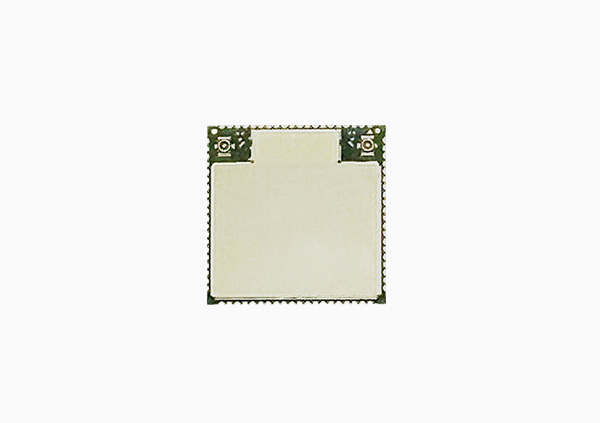

AWM6721S

802.11ax/ac/a/b/g/n WiFi Combo SiP Module (WiFi 6/6E), 2T2R



  • Chipset: MediaTek
  • Antenna:  External
  • Interface: WLAN: SDIO 3.0/2.0
  • Compliant with AECQ-100 Grade 3
  • Support: Linux



Category: Tags: , , , , ,
Share:
Enquire Here DatasheetDownload Driver

Product Overview



AWM6721S is a fully Wi-Fi 6E (2.4/5/6GHz) and functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors’ 802.11a/b/g/n/ac/ax 2×2 Access Points with MIMO standard and can accomplish up with dual stream in 802.11ax to connect the wireless LAN. .



In addition, this compact module is a total solution for a combination of Wi-Fi technologies. The module is specifically developed for tablet, OTT box and portable devices.



Besides, the main chip of AWM6721S Module is compliant with AECQ-100 Grade 3 (-40°C~85°C) . The module size is 23mm*23mm with LGA-89 package type.

Suitable Application



This module is a total solution for a combination of 11ax WiFi 6/6E combo technologies. The module is specifically developed for  telematics, IVI, ADAS, and connected cockpit systems, tablet, OTT box and portable devices and automotive and industrial application etc.



Certifications



AEC-Q100

Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11ax/ac/a/b/g/n WiFi Module
Chipset MediaTek
Host Interface WiFi: Support SDIO 3.0/2.0
RADIO
Antenna External
Operating Frequency 2.4GHz ISM Band
2.412GHz~2.484GHz

5/6GHz UNII Band

5.150GHz~5.350GHz, 5.47GHz~5.725GHz、5.725GHz~5.85GHz

5.925~7.125GHz
*Subject to local regulations*
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g/n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM)
ENVIRONMENTAL
Temperature Range -40~ 85°C (Operating) -40 ~ 125°C (Storing)
Humidity (Non-Condensing) 10 ~ 95% (Operating)
SIZE

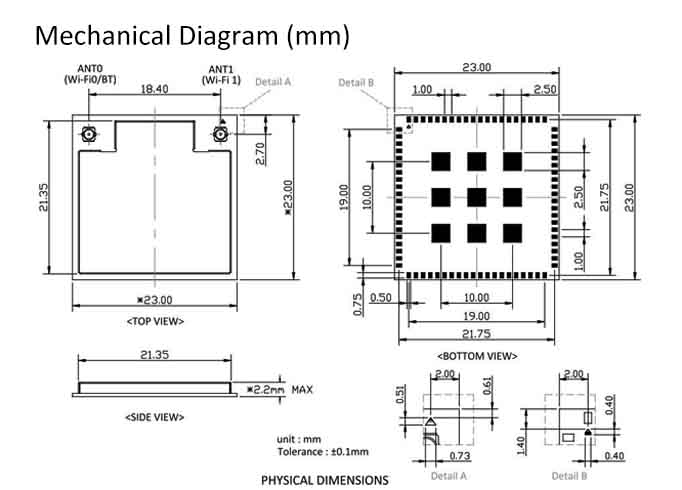

Dimension (MM) 23mm x 23 mm x 2.2mm (Max.)
Weight TBD
SOFTWARE
Driver Linux
Security
Miscellaneous
Warranty Period 12 Month
HS Code 8517620050
