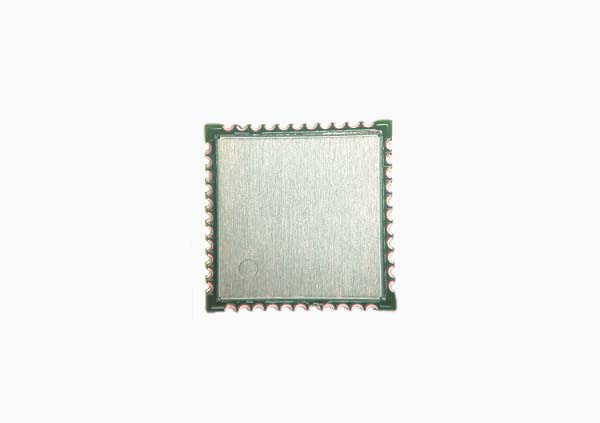

AP71582R

Bluetooth® Low Energy 5.3, Zigbee® 3.0 and 802.15.4 Multi-Protocol RF Module



  • Embedded ARM® Cortex® -M3 CPU, internal MCU for MAC, Boot ROM, ARM®
  • Ultra-low power sensor controller
  • Integrated security: SHA, AES, ECC accelerator
  • 2.4 GHz RF transceiver compatible –Bluetooth 5.3 Low Energy and IEEE 802.15.4 PHY and MAC.
  • Output power up to +10 dBm with temperature compensation
  • Long-range and low-power applications



Category: Tags: , , ,
Share:
Enquire Here DatasheetDownload Driver

Product Overview



SparkLAN Technology would like to release a low-cost, small size, highly integration module which include BLE IoT functionalities. The highly integrated AP71582R module makes the possibilities of Bluetooth 5.3 Low Energy, Multiprotocol, Zigbee 3.0, Thread 2.4 GHz proprietary modulations multi-rate FSK, OQPSK-based formats, Building automation, Medical, Industrial transport-asset tracking, Factory automation and control…etc. application.



The AP71582R module is a multiprotocol 2.4 GHz wireless microcontroller (MCU) targeting Thread, Zigbee®3.0, Bluetooth® 5.3 Low Energy, IEEE 802.15.4g, and proprietary 2.4G networking stacks to facilitate home & building automation, smart lighting, smart locks. The module is optimized for ultra-low power wireless communication.

Suitable Application



●  Building automation
●  Industrial transport – asset tracking
●  Factory automation and control
●  Medical
●  Electronic point of sale (EPOS) –Electronic Shelf Label (ESL)

Certifications



Environmental Compliance



ROHS Reach

Specification





STANDARD
Product Description Bluetooth® Low Energy 5.3 / Zigbee® 3.0 and 802.15.4 Multi-Protocol RF Module
ENVIRONMENTAL
Temperature Range -40~ 85°C (Operating) -40 ~85°C (Storing)
Humidity (Non-Condensing) 10 ~ 80% (Operating) 5 ~ 95% (Storing)
SIZE
Dimension (MM) 12 x 12(typical) mm x 1.65mm±0.2mm(Max.)
Weight 0.44g
Miscellaneous
Warranty Period 12 Month
HS Code 8517620050
