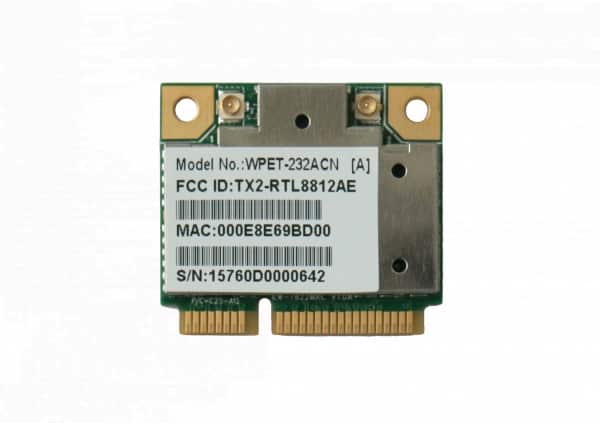

WPET-232ACN

802.11ac/a/b/g/n Mini PCIe Module (WiFi 5), Realtek RTL8812AE, 2T2R



  • Standard: 802.11ac/a/b/g/n
  • Host interface: Mini PCIe
  • Chipset: Realtek RTL8812AE
  • Antenna: 2 x IPEX MHF1 connectors
  • Data rate up to 867Mbps
  • Enhanced wireless security: 64/128-bits WEP, WPA, WPA2, 802.1x
  • Support Linux, Android by request



Categories: , , Tags: , ,
Share:
Enquire Here DatasheetDownload Driver

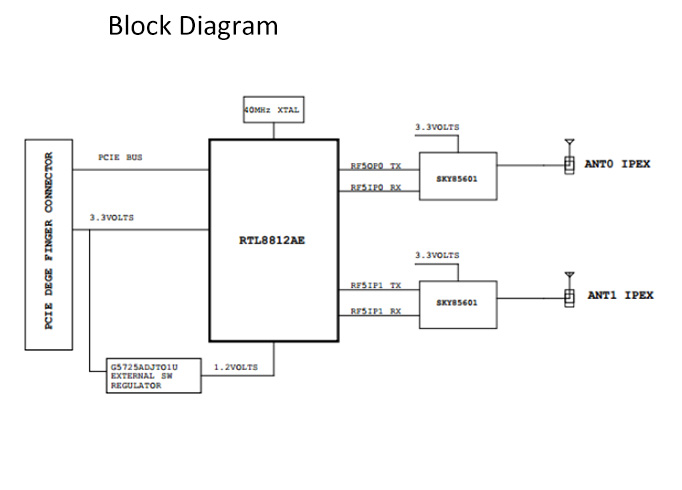

Product Overview



Dual-Band 802.11ac Solution

SparkLAN WPET-232ACN is an 802.11ac/a/b/g/n Dual-Band Mini PCI express module (WiFi 5) based on Realtek RTL8812AE chipset. It supports 2T2R (2×2) technology, which runs up to 300Mbps (11n MSC15) and 867Mbps (11ac MCS9). The WPET-232ACN supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency.



Higher throughput for Robust Networking Environment

Adopting the latest WiFi 5 solution, WPET-232ACN is ideal for next-generation high throughput bandwidth-intensive networking applications.



Secure Wireless Connection

 Incorporated with advanced security encryption, such as 64/128-bits WEP, WPA, WPA2,802.1x and WPS it helps prevent users’ devices from malicious attacks. In addition, WPET-232ACN supports WPS (Wi-Fi Protected Setup) for easy connection

Suitable Application



Applications include medical devices, security systems, industrial computers, medical devices, or consumer electronics, and many more.

Certifications



EU Region Japan

Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11ac/a/b/g/n
Chipset Realtek RTL8812AE
Host Interface
 WLAN : PCIe
RADIO
Antenna 2 x IPEX MHF1 connectors
Operating Frequency 802.11 ac/a/b/g/n ISM Band
2.400GHz~2.4835GHz

5.150GHz~5.825GHz

*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 16dBm ≤ -84dBm
11g @ 54Mbps 14dBm ≤ -70dBm
11gn HT20 @ MCS 7 13dBm ≤ -65dBm
11gn HT40 @ MCS 7 13dBm ≤ -63dBm
11a @ 54Mbps 13dBm ≤ -70dBm
11an HT20 @ MCS 7 13dBm ≤ -68dBm
11an HT40 @ MCS 7 13dBm ≤ -64dBm
11ac HT80 @ MCS 9 9dBm ≤ -54dBm
POWER CONSUMPTION
Continue TX 560mA
Continue RX 400mA
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range 0~ 40°C (Operating) -20 ~ 60°C (Storing)
Humidity (Non-Condensing) 10 ~ 85% (Operating) 5~90% (Storing)
SIZE

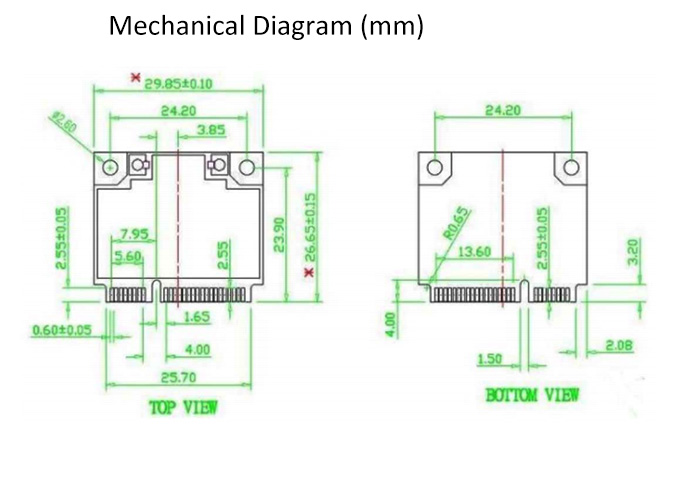

Dimension (MM) 29.85mm(±0.1mm) x 26.85mm(±0.15mm) x 3.5mm (±0.3mm)
Weight 3.7g
SOFTWARE
Driver Linux
Android by request
Security 64/128-bits WEP , WPA , WPA2, 802.1x
