EOL

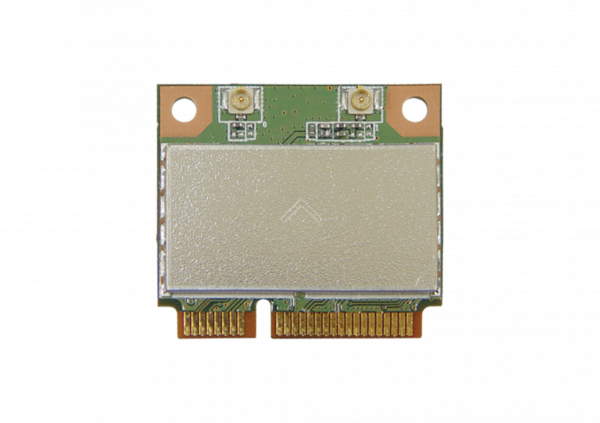

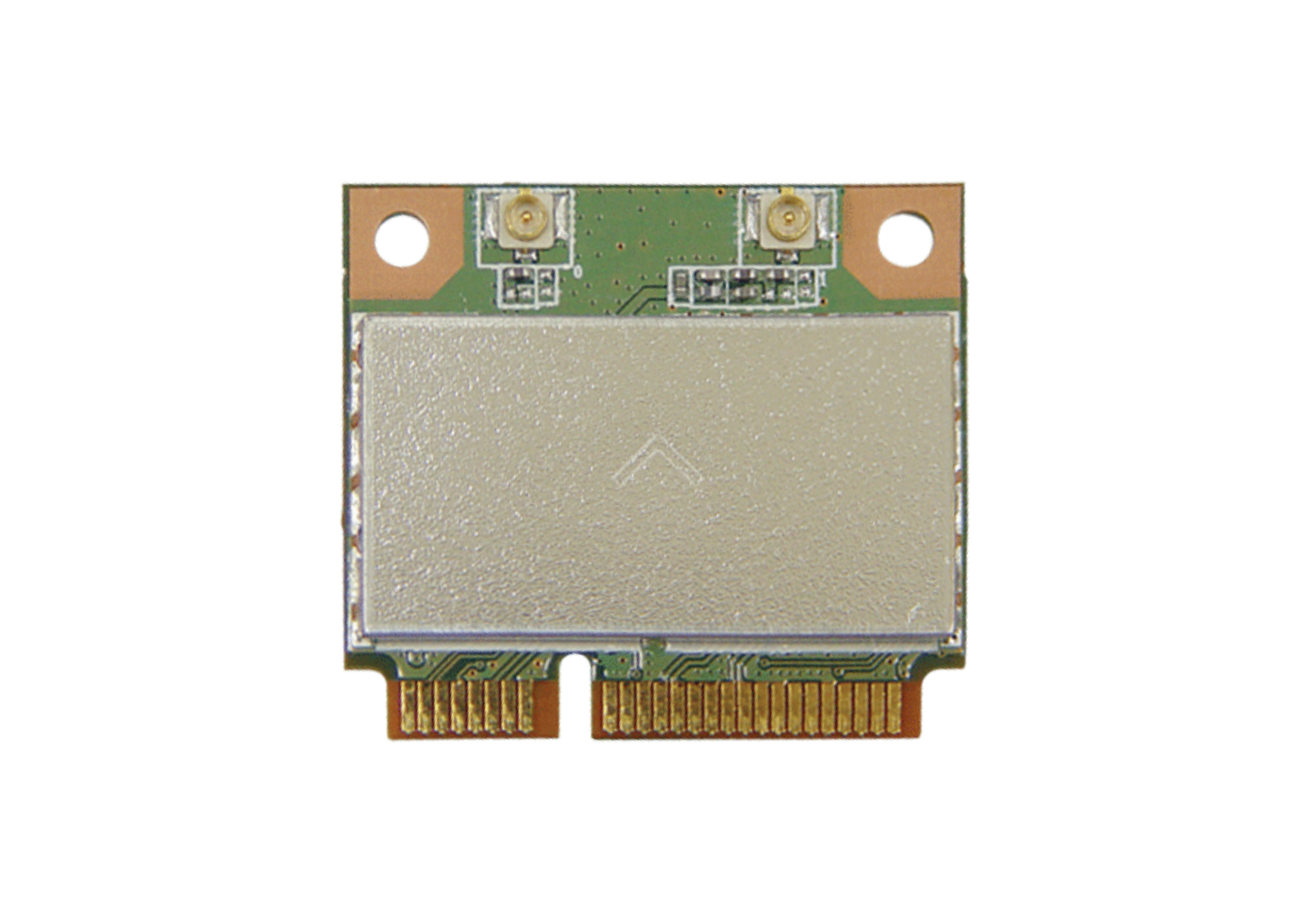

WPER-272GN

802.11b/g/n Half Mini PCIe Module, Ralink RT5392, 2T2R

  • Standard: 802.11b/g/n
  • Host interface: Mini PCI-E
  • Chipset: Ralink RT5392
  • Antenna: 2 x U.FL connectors, 2T2R
  • Data rate up to 300Mbps
  • Enhanced wireless security: WEP, WPA, WPA2
  • Support Windows 2000/ XP/ Vista, Win 7, Linux, Android by request

*Not recommended for new design

Category: Tags: , ,
Share:
Enquire Here

Product Overview



Superior Performance



SparkLAN WPER-272GN Wireless Mini PCI Express Module, based on Ralink RT5392 chipset, is compliant with 802.11b/g/n standard. It supports up to 300Mbps data rates.



MIMO 2T2R Solution



This WiFi Mini PCIe integrates MIMO 2T2R technology, which allows signals to reach longer range with faster speed.



Best Choice for High-End Notebook



The WPER-272GN wireless 11n PCIe module is ideal for embedded in enterprise and high-end consumer notebooks. It can also be used for various Wi-Fi applications, such as multimedia devices or networking equipments.

Suitable Application



The product is perfect for security gateway designs, access point, in vehicle computers and other industrial / high performance required applications.

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11b/g/n
Chipset Ralink RT5392
Host Interface Half PCI Express
RADIO
Antenna 2 x U.FL connectors, 2T2R
Operating Frequency 802.11g ISM Band: 2.412 ~ 2.4835GHz
*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11gn OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY
802.11 Power – TX (± 1.5dBm) Sensitivity – RX (± 2dBm)
11b @ 11Mbps 17dBm ≤ -96dBm
11g @ 54Mbps 14dBm ≤ -75dBm
11gn HT20 @ MCS 15 13dBm ≤ -67dBm
11gn HT40 @ MCS 15 13dBm ≤ -66dBm
POWER CONSUMPTION
Continue TX 389mA
Contibue RX 378mA
OPERATING VOLTAGE
Operating Voltage DC 3.3V ± 9%
Temperature Range 0~ 55°C (Operating) -40 ~ 80°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
SIZE
Dimension (MM) 30.00mm x 26.80mm x 6.0mm
Weight ≤ 3.23g
SOFTWARE
Driver Windows XP/ Vista, Win 7, Linux
Security WEP, WPA, WPA2
