EOL

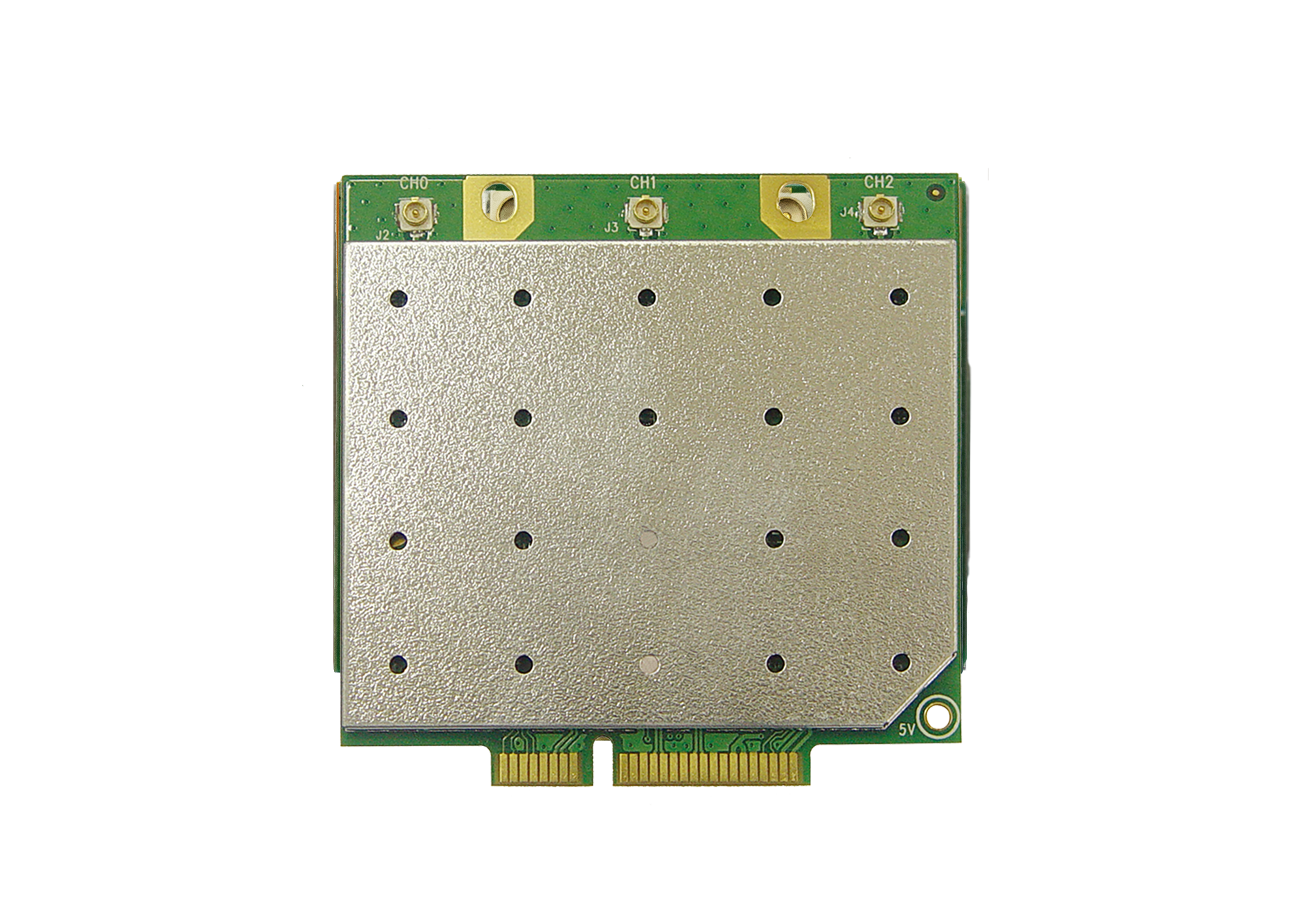

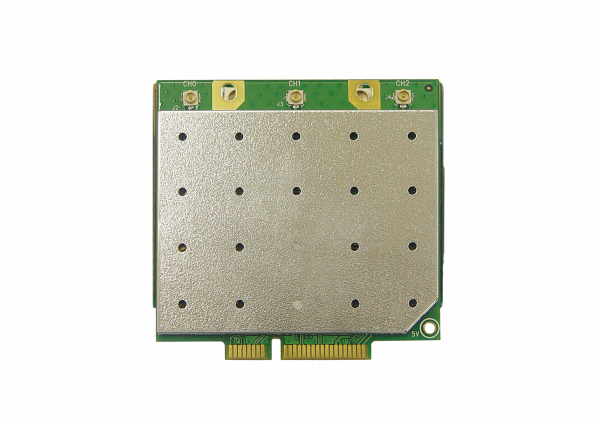

WPEA-351AC

802.11ac/a/n Mini PCIe Module (WiFi 5), Qualcomm QCA9880, 3T3R

  • Standard: 802.11ac/a/n
  • Interface: PCI Express
  • Chipset: Qualcomm Atheros QCA9880
  • Antenna: 3 x U.FL connectors, 3T3R
  • Data rate up to 1.3Gbps (VHTMCS9)
  • Enhanced wireless security: 64/128-bits WEP, WPA, WPA2, 802.1x
  • Support Linux
Category: Tags: , ,
Share:
Enquire Here Download Driver

Product Overview



802.11ac 5GHz Solution
SparkLAN WPEA-351AC is an 802.11ac/a/n 5GHz Single-Band Mini PCI express module (WiFi 5) based on Qualcomm Atheros QCA9880 chipset. It supports 3T3R (3×3) technology, which runs up to 433Mbps (11an MSC15) and 1.3Gbps (11ac VHTMCS9). The WPEA-351AC supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency..



Higher throughput for Enterprise Networking
Adopting the latest WiFi 5 solution, WPEA-351AC is ideal for next-generation high throughput enterprise networking solution.



Secure Wireless Connection
Incorporated with advanced security encryption, such as 64/128-bits WEP, WPA, WPA2, and 802.1x, it helps prevent users’ devices from malicious attacks.

Suitable Application



Not recommend for new design

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11ac/a/n
Chipset Mac/BB/RF

Qualcomm Atheros AR9880
Host Interface
 PCI express
RADIO
Antenna 3 x U.FL connectors, 3T3R
Operating Frequency 802.11a ISM Band: 5.150 ~ 5.825GHz
*subject to local regulation
MODULATIONS
802.11a 802.11a: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac 802.11ac: OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
POWER & SENSITIVITY
802.11 Power – TX (± 2dBm) Sensitivity – RX
11a @ 54Mbps 14.5dBm ≤ -68dBm
11an HT20 @ MCS 7 15dBm ≤ -66dBm
11an HT40 @ MCS 7 15dBm ≤ -63dBm
11ac HT80 @ VHTMCS9 13dBm ≤ -51dBm
POWER CONSUMPTION
Continue TX TBD
Contibue RX TBD
Idle TBD
OPERATING VOLTAGE
Operating Voltage DC 3.3V ± 10% I/O power supply
Temperature Range 0~ 40°C (Operating) -20 ~ 60°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
SIZE
Dimension (MM) 50mm x 50mm
Weight TBD
SOFTWARE
Driver Linux
Security 64/128-bits WEP, WPA, WPA2, 802.1x
