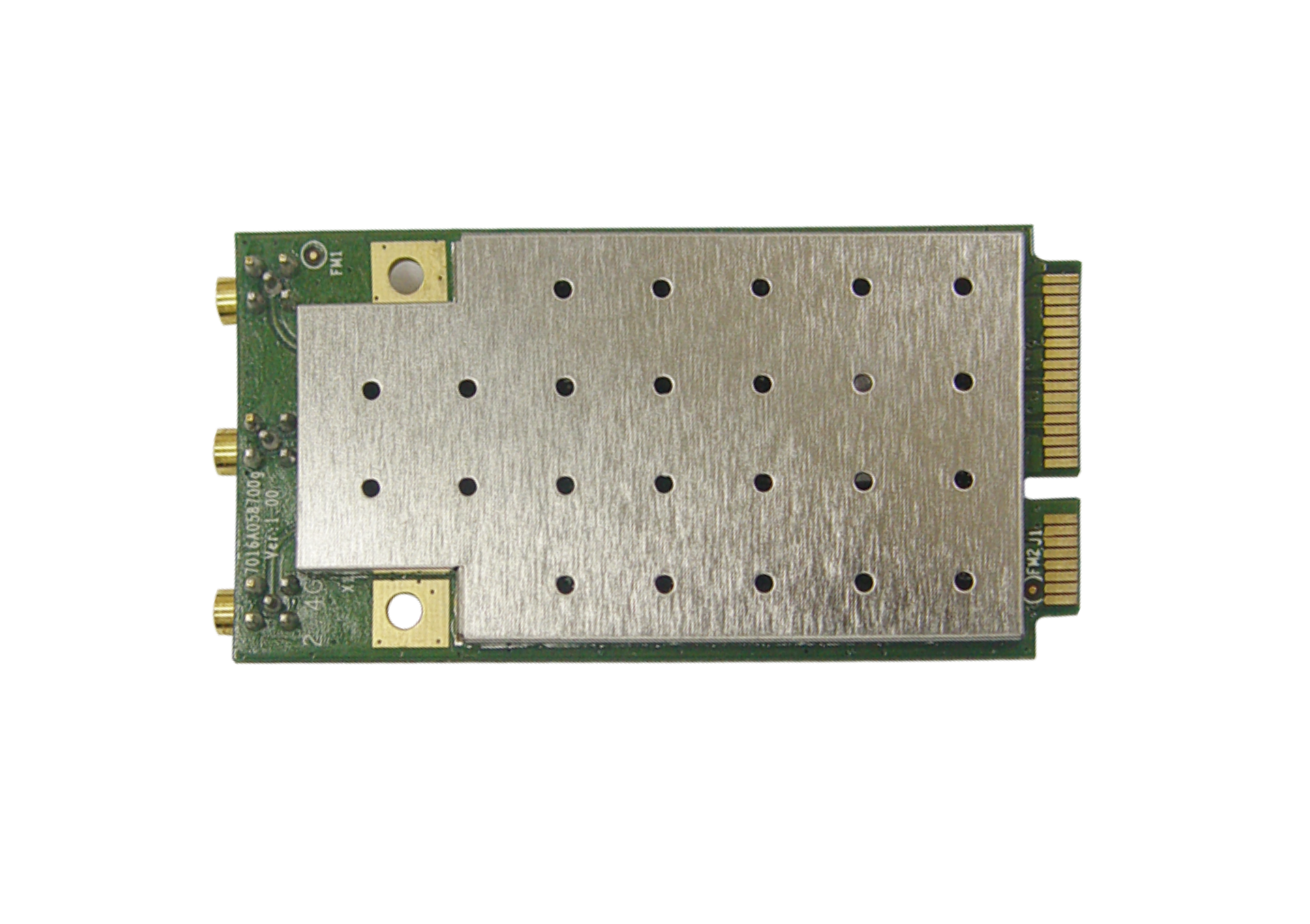

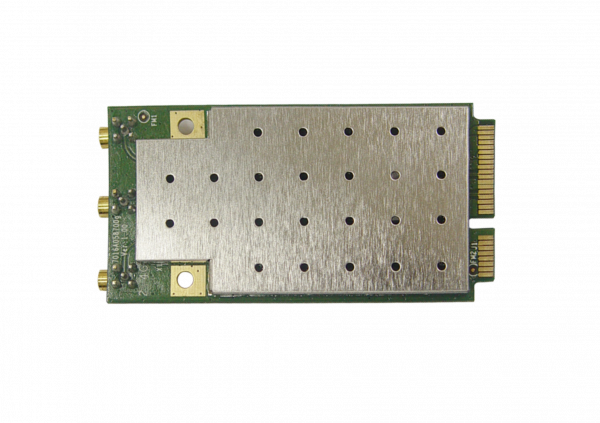

WPEA-350GNH

802.11b/g/n High-Power Mini PCIe Module, Atheros AR9590-AR1A, 3T3R

  • Standard: 802.11b/g/n
  • Interface: PCI Express
  • Chipset: Atheros AR9590-AR1A
  • Antenna: 3 x MMCX connectors
  • Data rate up to 450Mbps
  • Enhanced wireless security: 64/128-bits WEP, WPA, WPA2
  • Support Linux

*Not recommended for new design

Share:
Enquire Here

Product Overview



802.11n High-Power Single-Band Solution

SparkLAN WPEA-350GNH is a High-Power 802.11b/g/n 2.4GHz Single-Band Mini Card based on Qualcomm Atheros AR9590-AR1A chipset. It supports 3T3R (3×3) MIMO technology, which runs up to 450Mbps and delivers exceptional WiFi output power up to 29dBm.



Optimized Performance for Multimedia Distribution

The WPEA-350GNH is suitable for Wi-Fi applications demanding bandwidth intensive wireless transmission, such as high-end Wi-Fi applications (mesh network, wireless monitor, and high-end notebook and PC) or digital home networking equipment (access point, router, set-top box, and gateway), video-over-IP, and video-over-wireless applications.

Suitable Application



Not recommend for new design

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11b/g/n
Chipset Ralink RT5572
Host Interface PCI Express
RADIO
Antenna 3 x MMCX connectors
Operating Frequency 802.11g ISM Band: 2.412 ~ 2.472GHz
*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY
802.11 Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 29dBm ≤ -88dBm
11g @ 54Mbps 24dBm ≤ -74dBm
11gn HT20 @ MCS 7 23dBm ≤ -72dBm
11gn HT40 @ MCS 7 23dBm ≤ -69dBm
POWER CONSUMPTION
Continue TX 1600mA
Contibue RX 359mA
OPERATING VOLTAGE
Operating Voltage PCIe slot: DC 3.3V ± 5%

PA: extended 5V power supply (pin 49, pin 51) ± 10%

Temperature Range 0~ 60°C (Operating) -45 ~ 85°C (Storing)
Humidity (Non-Condensing) 10 ~ 85% (Operating) 5 ~ 90% (Storing)
SIZE
Dimension (MM) 31mm x 58mm x 11mm
Weight ≤ 10g
SOFTWARE
Driver Linux
Security 64/128-bits WEP, WPA, WPA2
