EOL

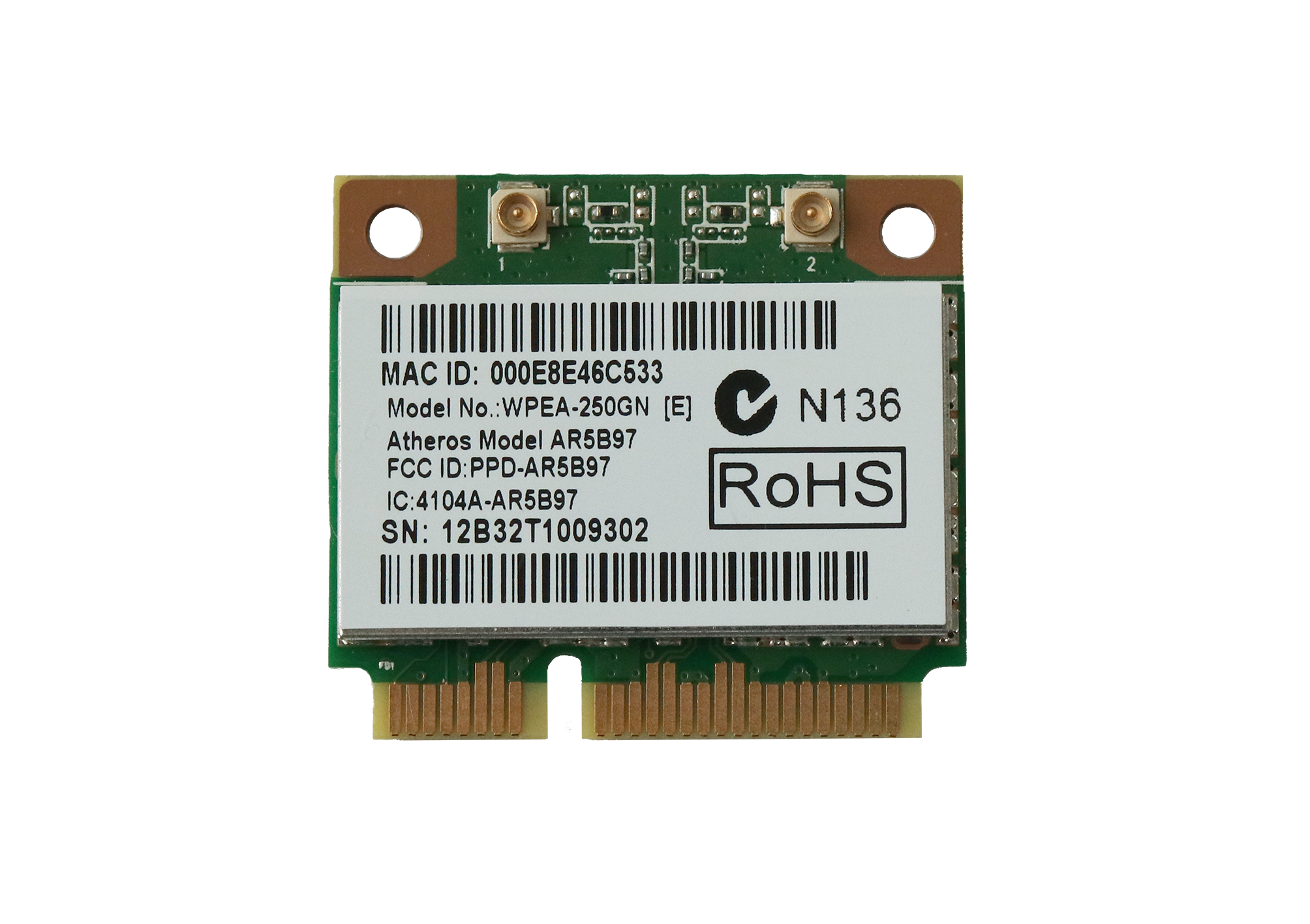

WPEA-250GN

802.11b/g/n Half Mini PCIe Module, Atheros AR9287, 2T2R, HB97

  • Reference Design: HB97
  • Standard: 802.11b/g/n
  • Interface: Half PCI Express
  • Chipset: Atheros AR9287
  • Antenna: 2 x U.FL connectors, 2T2R
  • Data rate up to 300Mbps
  • Enhanced wireless security: WEP, WPA, WPA2
  • Support Windows XP/ Vista, Win 7, Linux, Android by request

*Not recommended for new design

Category: Tags: , ,
Share:
Enquire Here

Product Overview



Superior Performance for Multimedia Networking

SparkLAN WPEA-250GN is an 802.11n Single-Band wireless mini pci express Half Mini Card based on Atheros AR9287 chipset. It supports 2T2R (2-stream) function, which provides maximum data rate up to 300Mbps and improves the overall Wi-Fi coverage area.



Secure Wireless Connection

This Mini PCIe wireless card, WPEA-250GN, incorporated advanced security encryption, such as WPA, and WPA2, to help prevent users’ devices from malicious attacks.

Suitable Application



Not recommend for new design

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11b/g/n
Chipset Atheros AR9287
Host Interface Half PCI Express
RADIO
Antenna 2 x U.FL connectors, 2T2R
Operating Frequency 802.11g ISM Band: 2.400 ~ 2.4835GHz
*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g 802.11g: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n 802.11n: OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY
802.11 Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 16dBm ≤ -83dBm
11g @ 54Mbps 11dBm ≤ -70dBm
11gn HT20 @ MCS 7 9dBm ≤ -61dBm
11gn HT40 @ MCS 7 8dBm ≤ -65dBm
POWER CONSUMPTION
Continue TX 570mA
Contibue RX 530mA
OPERATING VOLTAGE
Operating Voltage DC 3.3V ± 10%
Temperature Range 0~ 75°C (Operating) -40 ~ 85°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 95% (Storing)
SIZE
Dimension (MM) 30.00mm x 26.80mm x 4mm (+0.5)
Weight 4.7g
SOFTWARE
Driver Windows XP/ Vista, Win 7, Linux
Security WEP, WPA, WPA2
