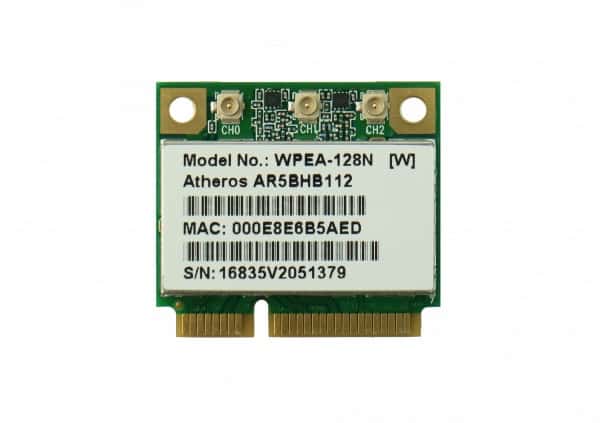

WPEA-128N

802.11a/b/g/n Half Mini PCIe Module, Atheros AR9380-AL1A, 3T3R



  • Chipset: Atheros AR9380-AL1A
  • Antenna: 3 x IPEX MHF1 connectors
  • Interface: WLAN: PCIe
  • Output Power up to 17dBm
  • Support: Windows XP/Vista/7, Linux



Categories: , , Tags: , ,
Share:
Enquire Here DatasheetDownload Driver

Product Overview



Superior Performance for Multimedia Networking

SparkLAN WPEA-128N is an 802.11n Dual-Band Half Mini Card based on Atheros AR9380-AL1A chipset. It supports 3T3R (3×3 radio) MIMO technology, which provides maximum data rate up to 450Mbps and improves the overall Wi-Fi coverage area.



Secure Wireless Connection

This wireless PCI express card, WPEA-128N, incorporated advanced security encryption, such as 64/128-bits WEP, WPA, and WPA2, helps prevent users devices from malicious attacks.



Improved Power Efficiency

With Atheros Unscheduled Automatic Power Save Delivery (UAPSD) solution, the device embedded with WPEA-128N can be in sleep mode more often and longer to achieve significant power efficiency.

Suitable Application



Applications include High-End Notebook and PC, Networking Equipment(Access Point, Router, Set-Top Box, and Gateway), security systems, Digital Multimedia devices, Gaming Machine, and many more.

Certifications



USA Canada Japan Korea

Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11a/b/g/n
Chipset Atheros AR9380-AL1A
Host Interface
 WLAN: PCIe
RADIO
Antenna 3 x IPEX MHF1 connectors
Operating Frequency 802.11a/b/g/n ISM Band
2.400GHz~2.4835GHz

5.180GHz~5.825GHz

*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 17dBm ≤ -92dBm
11g @ 54Mbps 16dBm ≤ -82dBm
11gn HT20 @ MCS 7 15dBm ≤ -79dBm
11gn HT40 @ MCS 7 14dBm ≤ -76dBm
11a @ 54Mbps 12dBm ≤ -81dBm
11an HT20 @ MCS 7 12dBm ≤ -78dBm
11an HT40 @ MCS 7 11dBm ≤ -74dBm
POWER CONSUMPTION
Continue TX 760mA
Continue RX 220mA
OPERATING VOLTAGE
Operating Voltage DC 3.3V
Temperature Range 0~ 60°C (Operating) -20 ~ 70°C (Storing)
Humidity (Non-Condensing) 10 ~ 90% (Operating) 5 ~ 90% (Storing)
SIZE

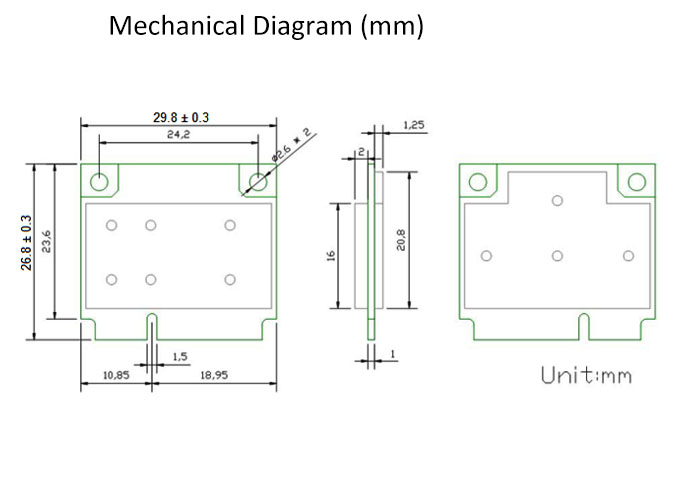

Dimension (MM) 29.8mm(±0.3mm) x 26.8mm(±0.3mm) x 4.25mm(±0.3mm)
Weight 4.3g
SOFTWARE
Driver Windows XP/Vista/7
Linux
Security 64/128-bits WEP, WPA, WPA2
