WNSQ-293BE(BT)

802.11be/ax/ac/a/b/g/n  Tri-band MU-MIMO WiFi+Bluetooth 5.4

M.2 LGA Type 1620 Module (WiFi 7), Qualcomm, 2T2R



  • Chipset: Qualcomm QCC2076
  • Antenna: 2 x IPEX MHF4 connectors, 2T2R
  • Interface: PCIe: WLAN; USB or UART :Bluetooth
  • Support: Linux



Categories: , Tags: , , , ,
Share:
Enquire Here Datasheet

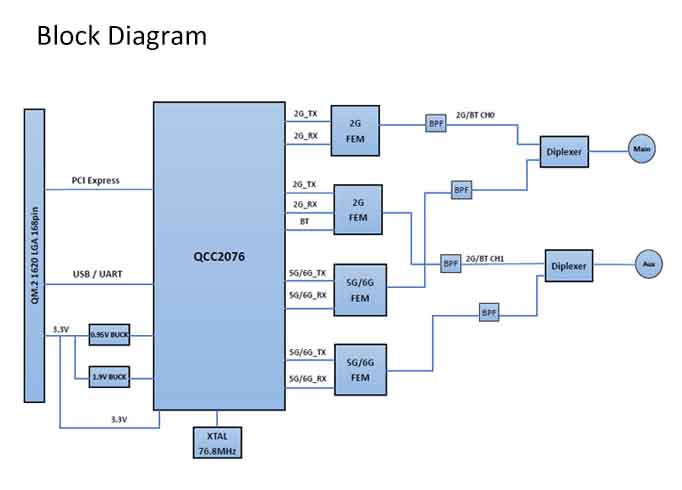

Product Overview

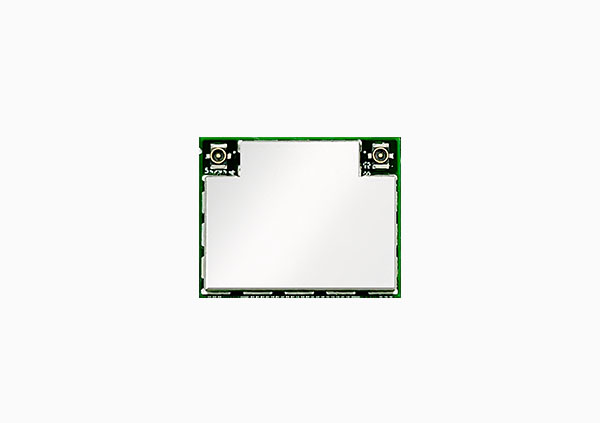

WNSQ-293BE(BT), Qualcomm based WiFi-7 (802.11be) module in M.2 1620 LGA formfactor, running PCIe (Wifi) and USB/UART (Bluetooth), with Tri-band capability (2.4GHz, 5GHz, and 6GHz). WNSQ-293BE(BT) supports simultaneous operation on 2.4 GHz +5 GHz, 2.4 GHz + 6 GHz and 5 GHz + 6 GHz.



WNSQ-293BE(BT) designed with 2 spatial streams (2T2R, or 2×2) in MU-MIMO mode. Adopting the latest 802.11be solution.It is ideal for next-generation high throughput.



Software wise WNSQ-293BE(BT) support Linux in the near future. The module is capable to run on both x86 platform and ARM based platform, and supports STA mode and Soft AP Mode*, recommend to run on application includes: digital signage/POS, rugged computer / tablets, fanless automation PC and other industrial environment applications that requires high speed data transmission.

Suitable Application



Applications include IPC/ Advertising machine/ OTT/IPTV/ DVB/ STB / DV/ Mini Driving Recorder/Intelligent Projector Pico/ VR/ AR terminal/ POSmachine/ Vehicle mounted front/ Rear Terminal UAV/ Robot/ Intelligent Gateway/ Smart city and other electronic products.

Certifications



FCC Certification Logo IC Certification Logo
USA EU Region Canada

Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11be/ax/ac/a/b/g/n(2T2R)
Bluetooth
V5.4, V5.2, V5.1, V5.0, V4.2, V4.1, V4.0LE, V3.0, V2.1+EDR
Chipset Qualcomm QCC2076
Host Interface WLAN : PCIe
Bluetooth: USB or UART
RADIO

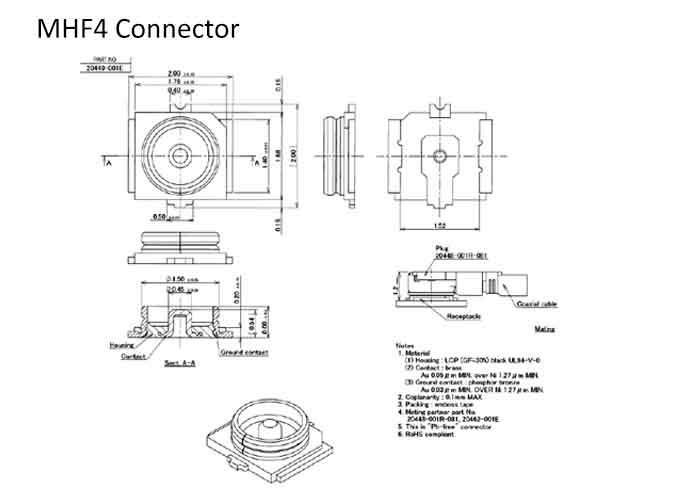

Antenna 2 x IPEX MHF4 connectors
Main:WiFi/BT
Aux: WiFi/BT
Operating Frequency 802.11be/ax/ac/a/b/g/n ISM Band
2.412GHz~2.484GHz

5.150GHz~5.850GHz

5.925GHz~7.125GHz

*Subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
802.11be OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM, 4096-QAM)
Bluetooth Header: GFSK
Payload 2M: π/4-DQPSK
Payload 3M: 8-DPSK
POWER & SENSITIVITY
WiFi Power – TX (± 2dBm) Sensitivity – RX
11b @ 11Mbps 18 dBm ≤ -91 dBm
11g @ 54Mbps 16 dBm ≤ -77.5 dBm
11gn HT20 @ MCS 7 16.5 dBm ≤ -76.5 dBm
11gn HT40 @ MCS 7 14.5 dBm ≤ -74 dBm
11a @ 54Mbps 16 dBm ≤ -76.5 dBm
11an HT20 @ MCS 7 15 dBm ≤ -76 dBm
11an HT40 @ MCS 7 14.5 dBm ≤ -73.5 dBm
11ac VHT80 @ MCS 9 13 dBm ≤ -64.5 dBm
11ac VHT160 @ MCS 9 13 dBm ≤ -62 dBm
11ax 2.4GHz
11ax HE40 @ MCS 13 11.5 dBm ≤ -55.5 dBm
11ax 5GHz
11ax HE80 @ MCS 13 12 dBm ≤ -52 dBm
11ax HE160 @ MCS 13 12 dBm ≤ -49.5 dBm
11ax 6GHz
11ax HE80 @ MCS 13 11 dBm ≤ -51 dBm
11ax HE160 @ MCS 13 11 dBm ≤ -48.5 dBm
11be 2.4GHz
11be EHT40 @ MCS 13 11.5 dBm ≤ -56 dBm
11be 5GHz
11be EHT80 @ MCS 13 12 dBm ≤ -52.5 dBm
11be EHT160 @ MCS 13 12 dBm ≤ -49.5 dBm
11be 6GHz
11be EHT80 @ MCS 13 11 dBm ≤ -51.5 dBm
11be EHT160 @ MCS 13 11 dBm ≤ -48.5 dBm
Bluetooth Class I and Class II Device
3M bps
1M bps
2M bps		 11≤ Output Power ≤ 17 dBm
3 ≤ Output Power ≤ 7 dBm
3 ≤ Output Power ≤ 7 dBm		 BER<0.1% Typical: -90 dBm
BLE 1Mbps (PER <30.8%) Typical: -93 dBm
BLE 2Mbps (PER <30.8%) Typical: -90 dBm
POWER CONSUMPTION
Continue TX 802 mA (MAX)
Continue RX 407 mA (MAX)
ENVIRONMENTAL
Operating Voltage DC 3.3V
Temperature Range -30~ +85°C (Operating) -40 ~ 85°C (Storing)
Humidity (Non-Condensing) 5 ~ 90% (Operating) 5 ~ 90% (Storing)
SIZE
Dimension (MM) 20mm (±0.15mm) x 16mm (±0.15mm) x 1.8 mm (±0.3mm)
Weight 1.2 g
SOFTWARE
Driver (MM) Linux
Security WPS2.0, WAPI, WPA, WPA2, WPA3
Miscellaneous
Warranty 12 Month
HS Code 8517620050
