EOL

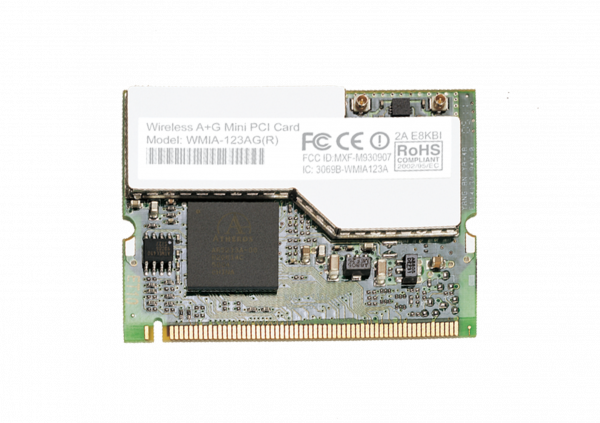

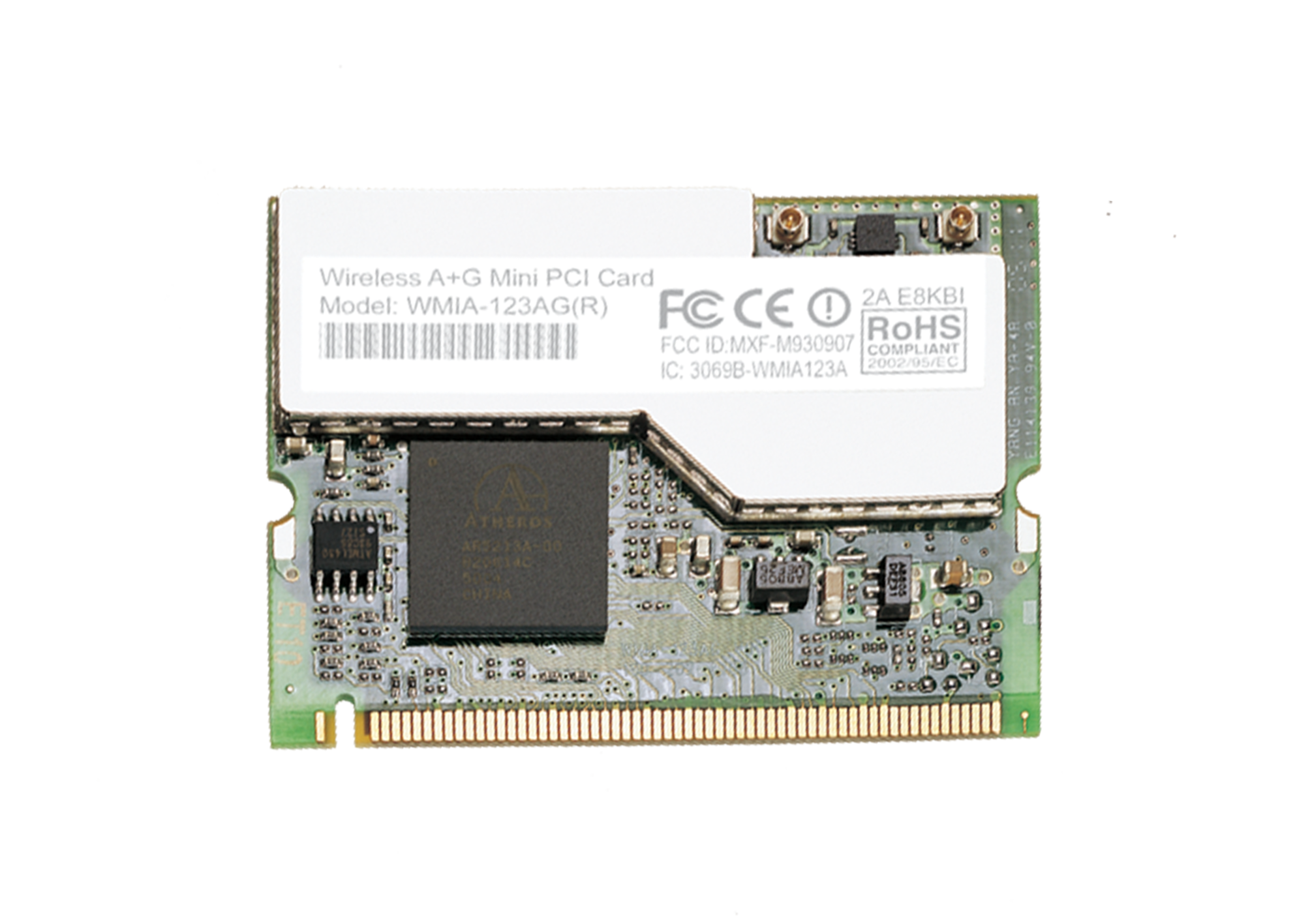

WMIA-123AG

WLAN 802.11a/b/g Mini PCI module Atheros (AR5213 + AR5112)

  • Standard: 802.11a/b/g
  • Interface: 32-bits Mini PCI Type III B
  • Chipset: Atheros AR5213 + AR5112
  • Antenna: 2 x U.FL connectors, 1T1R
  • Enhanced wireless security: 64/128/152-bit WEP, WPA, WPA2, Encryption TKIP/AES, 802.1x, LEAP
  • Support Windows 2000/ XP/ Vista, Linux

*Not recommended for new design

Category: Tags: ,
Share:
Enquire Here

Product Overview



High-Speed Performance

SparkLAN WMIA-123AG is a high-speed 802.11a/b/g Dual-Band Mini PCI module with Atheros AR5213 + AR5112 chipsets, which delivers up to 108Mbps data rate in Super AG mode.



Enhanced Wireless Security

With advanced security encryptions, such as 64/128/152-bits WEP, WPA, WPA2, Encryption TKIP/ AES, 802.1x, LEAP, WMIA-123AG helps create secure wireless network.



Ideal for Embedded Applications

Operating in both 2.4GHz and 5GHz frequency bands, WMIA-123AG creates reliable network, which makes it the best choice for you to quickly and easily integrate with your wireless enabled applications.

Suitable Application



Not recommend for new design

Certifications



Not recommend for new design

Specification



STANDARD
WI-FI 802.11a/b/g
Chipset Atheros AR5213 + AR5112
Host Interface
 32-bits Mini PCI, Type III B

4-Pin connector or 4-Pin Wafer connector
RADIO
Antenna 2 x U.FL connectors, 1T1R
Operating Frequency 802.11b/g ISM Band: 2.412~2.497GHz

802.11a U-NII Band: 5.15 ~ 5.85GHz

*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11a/g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
8802.11n/strong> OOFDM (BPSK, QPSK, 16-QAM, 64-QAM)/td>
POWER & SENSITIVITY
802.11 Power – TX (± 1.5dBm) Sensitivity – RX (± 2dBm)
11a @ 54Mbps 12dBm ≤ -70dBm
11b @ 11Mbps 19dBm ≤ -87dBm
11g @ 54Mbps 14.5dBm ≤ -70dBm
POWER CONSUMPTION
Continue TX Max. 590mA@3.3V
Contibue RX Max. 290mA@3.3V
OPERATING VOLTAGE
Operating Voltage DC 3.3V ± 5%
Temperature Range 0 ~ 50°C (Operating) -20 ~ 85°C (Storing)
Humidity (Non-Condensing) 10 ~ 85% (Operating 5 ~ 90% (Storage)
SIZE
Dimension (MM) 59.70mm x 44.60mm x 5.0mm
Weight 20g
SOFTWARE
Driver Windows 2000/ XP/ Vista
Linux
Security 64/128/152-bit WEP, WPA, WPA2, Encryption TKIP/AES, 802.1x, LEAP
