Product Overview

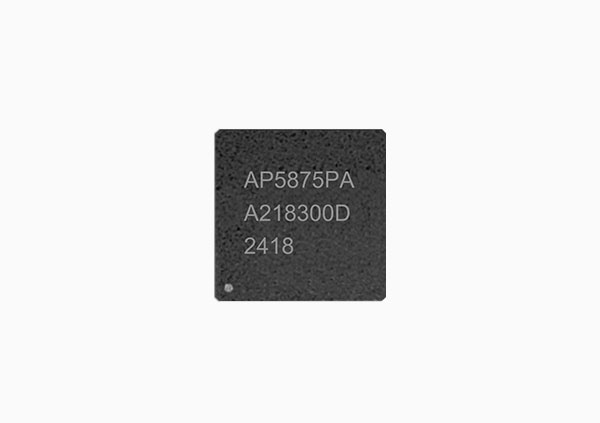

AP5875PA is an 802.11ax (WiFi 6) SiP Module, 802.11ax allow Increased capacity, faster speed, better coverage connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. By implementing the new 802.11ax standard with its unique features such as OFDMA, 1024QAM, Target Wake Time (TWT), and spatial reuse, the AP5875PA module enables smooth streaming of high-resolution videos, fewer dropped connections and faster connections farther away from the router and in dense environments.

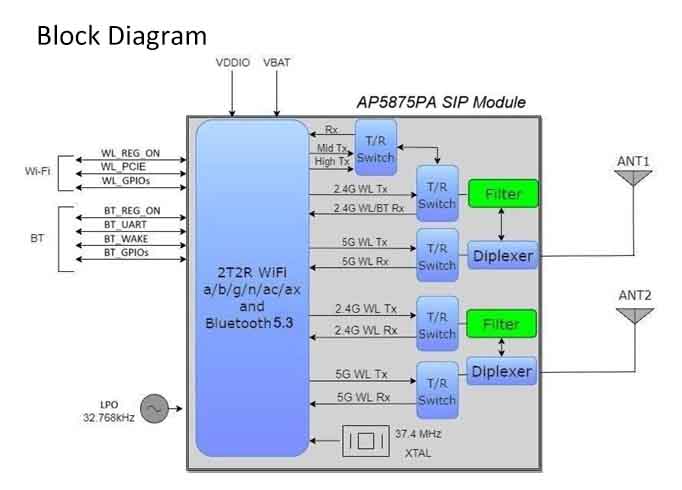

The Wi-Fi and Bluetooth 5.3 functionalities module with seamless roaming capabilities and advanced security. The 802.11 ax sip module can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity when simultaneously servicing multiple devices using the same frequency chunks. Furthermore the included PCIE v3.0 interface for Wi-Fi, UART/ PCM interface for Bluetooth.
