Want M.2 Variant? Check Out AC5035M2

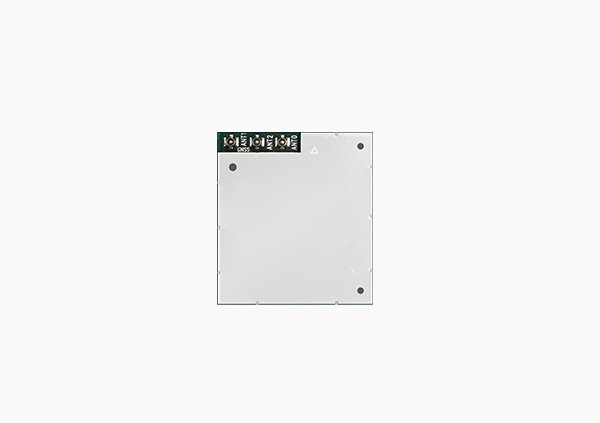

The SparkLAN Technology® AC5035_NA module is a multipurpose 3GPP Release 17 Redcap module. It was envisioned to operate in conjunction with a host board that must provide power and control for its various applications. The module chipset is Qualcomm SDX35, which supports 4G and 5G technologies and was designed with an advanced 4 nm process for superior performance and power efficiency.
 |
 |

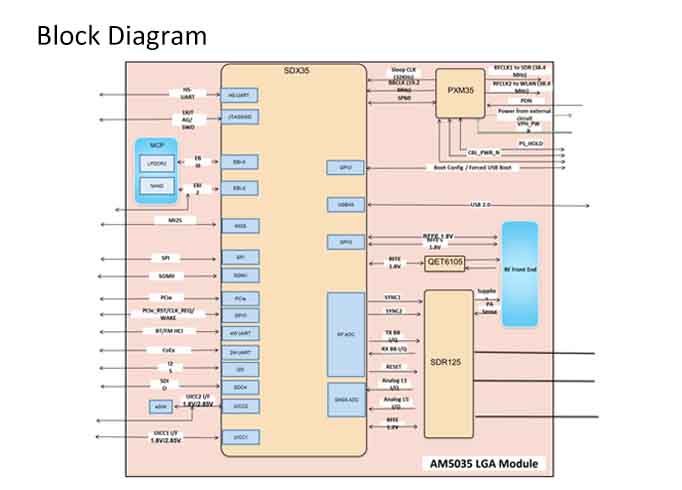

||||
| ROHS | Reach |
Processors |
||
| Applications | Arm Cortex A7 processor at up to 1.7 GHz | |
| Modem System | Qualcomm® Hexagon™ DSP processor up to 1364 MHz (Turbo) | |
| Always-on Subsystem | Cortex-M3 up to 400 MHz Hardware-based resource and power management |
|
| Data Interface | QUP ports / UART/ I2C /SPI (master only) | |
| UIM: UIM1 / UIM2 (internally connected to an eSIM (optional) card but can be used externally as well) | ||
| USB: One: HS USB 2.0 | ||
| PCIe: One: GEN 2.0, 1 lane | ||
| Audio Interfaces : Primary and secondary I2C and PCM | ||
| Key Chipset Modem | Qualcomm SDX35 | |
RF Support |
||
| Standard Compliance | 3GPP Release 17 Red. Cap. 5G NR sub-6 | |
| Multimode Support | 5G NR Sub-6 (FR1) SA and 4G LTE CAT4 | |
| Antenna Ports | 2x WWAN + 1 GNSS (option) | |
| Technology Frequency Range | FR1 (4G, 5G-NR): 0.6 GHz to 5.0 GHz | |
| Maximum Bandwidth | 20 MHz, No CA | |
| Modulation | UL-256QAM; DL-256QAM | |
| DL MIMO | 2 × 2 Rx: All 4G and 5G LMHB and UHF bands | |
| SRS | 1T/2R(TDD_LTE, TDD_NR SA) | |
| GNSS (option) | GPS, GLONASS, Galileo, and BeiDou support Two GNSS paths to support simultaneous L1 and L2/L5 | |
Supported Bands |
||
| LTE Bands | TDD: 41, 48 FDD: 2/25, 4/66, 5, 12, 13, 14, 71 |
|
| Sub-6 5G NR | n2, n5, n14, n25, n41, n48, n66, n70, n77 | |
Mechanical/thermal |
||

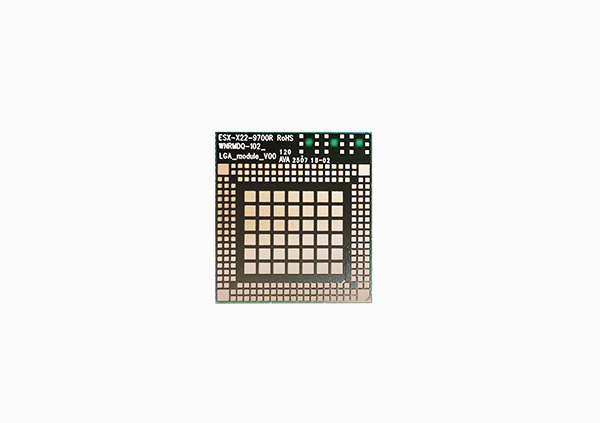

| Form Factor | LGA module | |
| Temperature Range | -30°C to +75°C | |

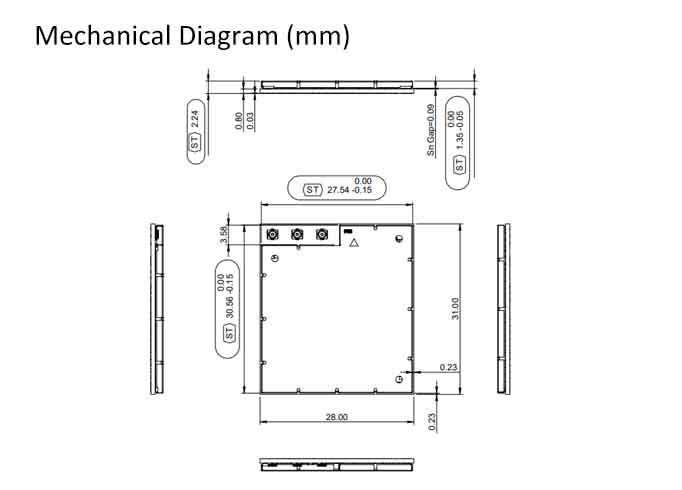

| Dimension | 28 mm × 31 mm | |
