EOL

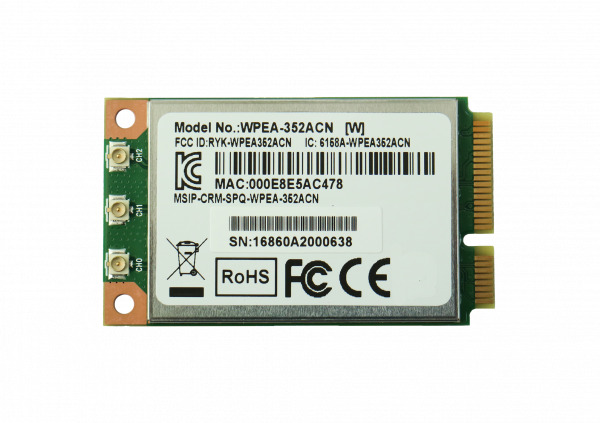

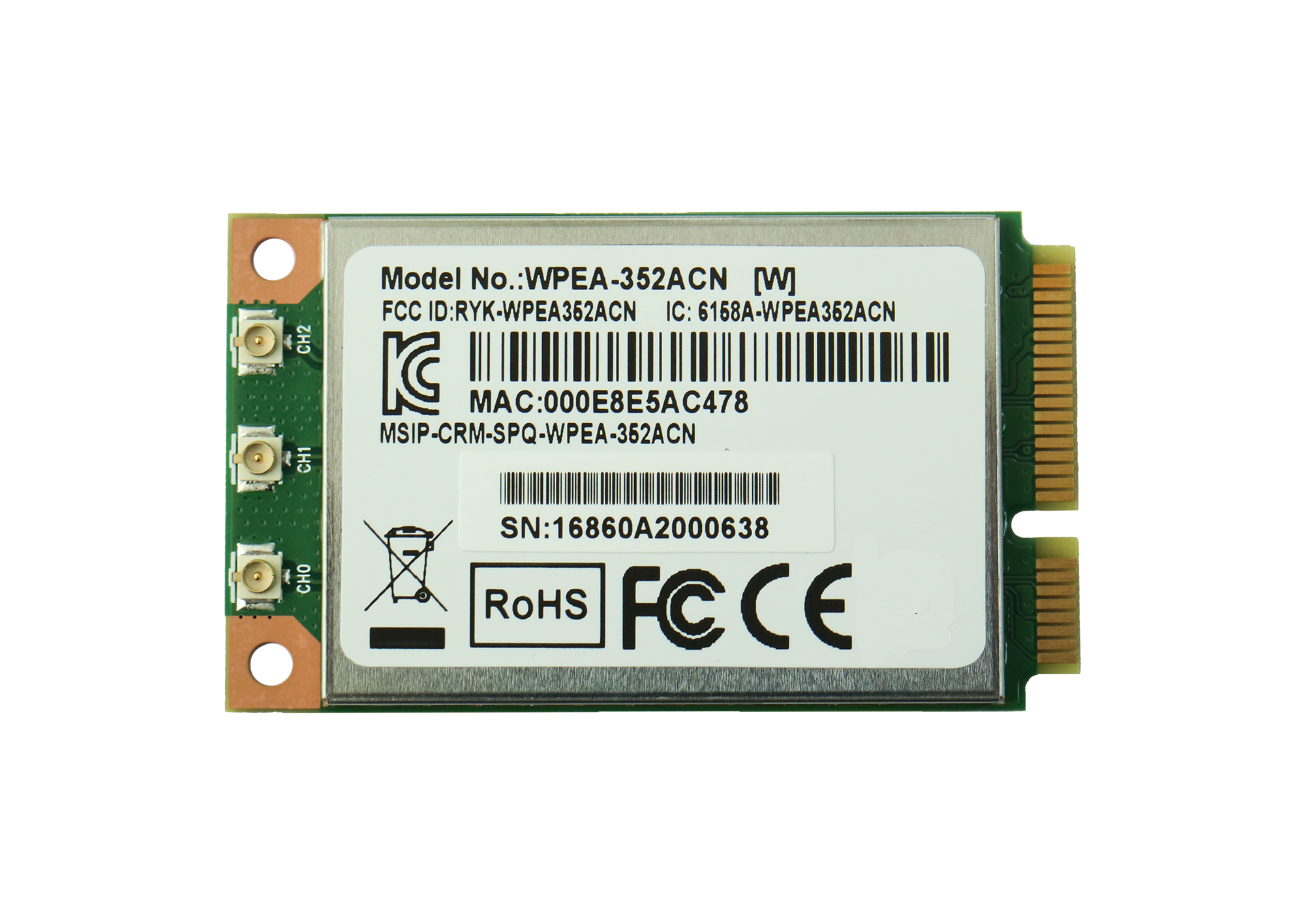

WPEA-352ACN

802.11ac/b/g/n Mini PCIe Module (WiFi 5), Qualcomm QCA9880-BR4A, 3T3R

  • Standard: 802.11ac/b/g/n
  • Host interface: Mini PCI-E
  • Chipset: Qualcomm Atheros QCA9880-BR4A
  • Antenna: 3 x U.FL connectors, 3T3R
  • Data rate up to 1.3Gbps (VHTMCS9)
  • Enhanced wireless security: WEP, WPA, WPA2, 802.1x
  • Support Linux
Categories: , , Tags: , ,
Share:
Enquire Here

Product Overview



Dual-Band 802.11ac Solution
SparkLAN WPEA352ACN is an 802.11ac/b/g/n Dual-Band Mini PCIe Module (WiFi 5) based on Qualcomm Atheros QCA9880-BR4A chipset. It supports 3T3R (3×3) technology, which runs up to 433Mbps (11n MSC15) and 1.3Gbps (11ac MCS9). The WPEA-352ACN supports 20/40/80MHz and 256-QAM to maximize bandwidth efficiency.



Higher throughput for Enterprise Networking
Adopting the latest WiFi 5 Module solution, WPEA-352ACN is ideal for next-generation high throughput enterprise networking solution.



Secure Wireless Connection
Incorporated with advanced security encryption, such as WEP, WPA, WPA2, and 802.1x, it helps prevent users’ devices from malicious attacks

Suitable Application



This product is perfect for Security gateway designs, In vehicle computers, medical devices, PoS, digital signs, Access Point, gateway, medical equipment, gaming machines, handheld devices, Robotic, and other industrial high performance required applications.

Certifications

Not recommend for new design

Specification



STANDARD
WI-FI 802.11ac/b/g/n
Chipset Atheros QCA9880-BR4A
Host Interface
 PCI Express
RADIO
Antenna 3 x U.FL connectors
Operating Frequency 802.11 ac/b/g/n ISM Band
11b/g/n ISM Band: 2.400GHz ~ 2.4835GHz

11ac ISM Band: 5.150GHz ~ 5.825GHz

*subject to local regulations
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11a/g OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
POWER & SENSITIVITY (ANT1)
802.11 Power – TX (± 2dBm) Sensitivity – RX
11a @ 54Mbps 15dBm ≤ -65dBm
11b @ 11Mbps 18dBm ≤ -76dBm
11g @ 54Mbps 15dBm ≤ -65dBm
11gn HT20 @ MCS 7 13dBm ≤ -64dBm
11gn HT40 @ MCS 7 12dBm ≤ -61dBm
11an HT20 @ MCS 7 13dBm ≤ -64dBm
11an HT40 @ MCS 7 13dBm ≤ -61dBm
11an HT40 @ MCS 7 10dBm ≤ -51dBm
POWER CONSUMPTION
Continue TX 1250mA
Contibue RX 350mA
OPERATING VOLTAGE
Operating Voltage DC 3.3V
Temperature Range -20~ 65°C (Operating) -30 ~ 75°C (Storing)
Humidity (Non-Condensing) 10 ~ 85% (Operating) 5 ~ 90% (Storing)
SIZE
Dimension (MM) 50.8mm x 29.85mm x 3.95mm(±0.5mm)
Weight ≤8g
SOFTWARE
Driver Linux
Security 64/128-bits WEP, WPA, WPA2, 802.1x
