NEW

AWM6725P

802.11be/ax/ac/a/b/g/n WiFi Combo SiP Module (WiFi 7), 2T2R



  • Chipset: MediaTek
  • Antenna:  External
  • Interface: WLAN: PCIe 2.1
  • Supports Dual-Band Dual Concurrent Design
  • Support: Linux



Category: Tags: , , ,
Share:
Enquire Here DatasheetDownload Driver

Product Overview

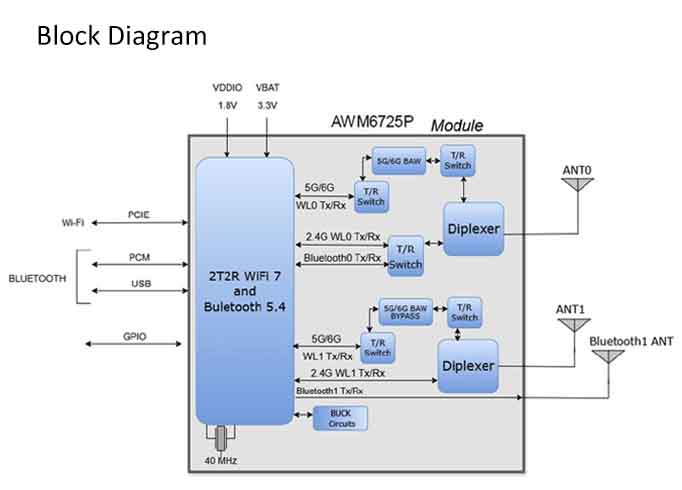

AWM6725P is a fully Wi-Fi 7 (2.4/5/6GHz) and Bluetooth functionalities module with seamless roaming capabilities and advance security, also it could interact with different vendors ’ 802.11a/b/g/n/ac/ax/be 2×2 Access Points with MIMO standard and can accomplish up with dual stream in 802.11 be to connect the wireless LAN. And meanwhile, this module include an independent Bluetooth RF Path for two Bluetooth mac application.



Furthermore, AWM6725P included PCIE 2.1 interface for Wi-Fi, USB/ PCM interface for Bluetooth. In addition, this compact module is a total solution for a combination of Wi-Fi + Bluetooth technologies. The module is specifically developed for tablet, OTT box and portable devices.

Suitable Application



This module is a total solution for a combination of 11ax WiFi 6/6E combo technologies. The module is specifically developed for  telematics, IVI, ADAS, and connected cockpit systems, tablet, OTT box and portable devices and automotive and industrial application etc.



Certifications



Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11ax/ac/a/b/g/n WiFi Module
Chipset MediaTek
Host Interface WiFi: PCIe 2.1
RADIO
Antenna External
Operating Frequency 2.4GHz ISM Band
2.412GHz~2.484GHz

5/6GHz UNII Band

5.150GHz~5.350GHz, 5.47GHz~5.725GHz、5.725GHz~5.85GHz

5.925~7.125GHz
*Subject to local regulations*
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g/n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
802.11ax OFDMA (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM)
ENVIRONMENTAL
Temperature Range -40~ 85°C (Operating) -40 ~ 125°C (Storing)
Humidity (Non-Condensing) 10 ~ 95% (Operating)
SIZE

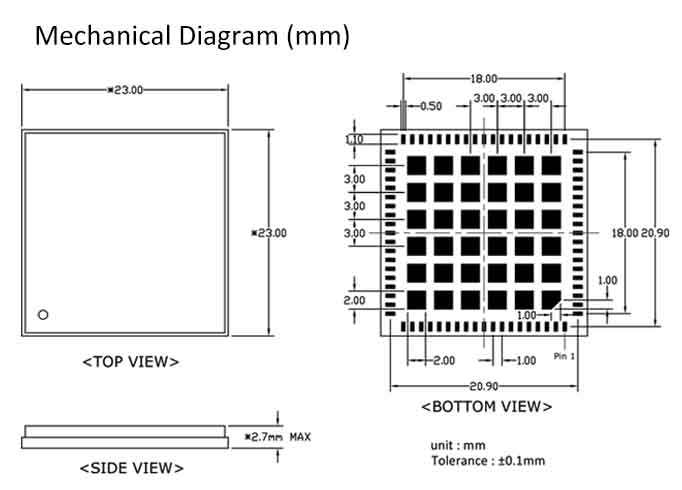

Dimension (MM) 23mm x 23 mm x 2.7mm (Max.)
Weight TBD
SOFTWARE
Driver Linux
Security
Miscellaneous
Warranty Period 12 Month
HS Code 8517620050
