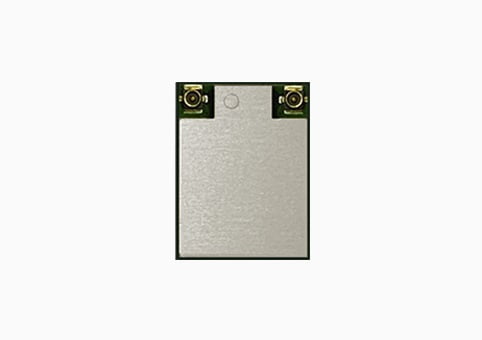

AP6345SD

802.11ac/a/b/g/n WiFi Combo M.2 LGA Type 1216 Module (WiFi 5), 1T1R



  • Chipset: Synaptics
  • Antenna: 1 x IPEX MHF4 connector, 1T1R
  • Interface: WLAN: SDIO 3.0/2.0
  • Support: Linux, Android



Categories: , , , Tags: , , , , ,
Share:
Enquire Here DatasheetDownload Driver

Product Overview

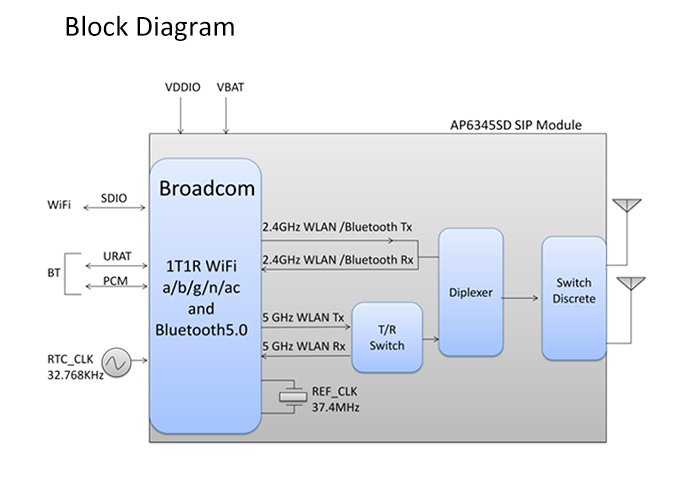

AP6345SD is 11ac/a/b/g/n 1T1R WiFi Combo M.2 LGA Type 1216 Module. It is a fully Wi-Fi functionalities module with seamless roaming capabilities and advance security. 802.11ac allow efficient allocation of low data-rate connections, improve the battery life of IoT sensors, and extend the range of Wi-Fi signals. It can support Multi-User MIMO (MU-MIMO) technology to increase channel capacity. Furthermore the included SDIO interface for Wi-Fi, UART/ PCM interface for BT. AP6345SD can support AP+Station mode at the same time.



It provides a small form-factor solution with minimal external components to drive down cost for handheld device flexibility in size, form, and function. The wireless module has been designed with the stringent power consumption requirements of portable devices in mind.

Suitable Application



This module is a total solution for a combination of 11ac WiFi 5 technologies. The module is specifically developed for tablets, OTT boxes, and portable devices, thin client devices, Gaming machines, etc.

Certifications



Environmental Compliance



ROHS Reach

Specification



STANDARD
WI-FI IEEE 802.11ac/a/b/g/n WiFi Module
Chipset Synaptics
Host Interface WiFi: SDIO V3.0/2.0
RADIO
Antenna 1 x MHF4 connector
Operating Frequency 2.4GHz ISM Band
2.400GHz~2.4835GHz

5GHz UNII Band

5.150GHz~5.850GHz

*Subject to local regulations*
MODULATIONS
802.11b DSSS (DBPSK, DQPSK, CCK)
802.11g/n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11a OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11n OFDM (BPSK, QPSK, 16-QAM, 64-QAM)
802.11ac OFDM (BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM)
ENVIRONMENTAL
Temperature Range -30~ 85°C (Operating) -40 ~ 85°C (Storing)
Humidity (Non-Condensing) 10 ~ 95% (Operating)
SIZE

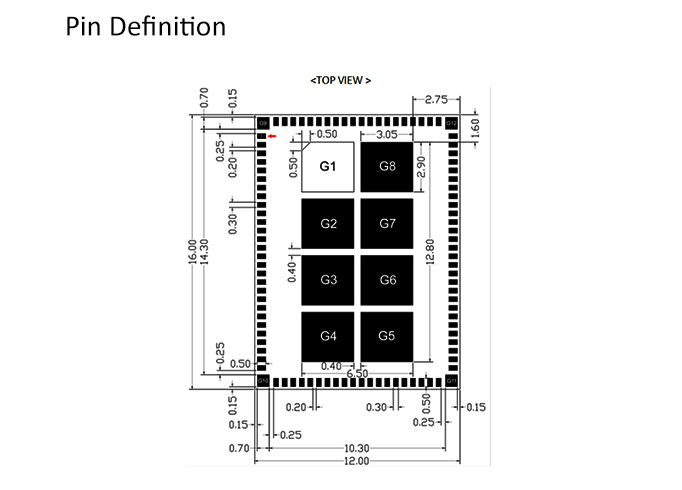

Dimension (MM) 12mm(±0.15mm) x 16mm(±0.15mm) x 1.6mm(Max.)
Weight 0.58g
SOFTWARE
Driver Linux, Android
Security
Miscellaneous
Warranty Period 12 Month
HS Code 8517620050
