First Wifi 6 is here, ready to launch!

Be the first to turbo up Wifi 6 in your device, and experience

3X Speed



4X Capacity



75% Lower Latency



Up to 65% power saving

Following the WiFi 6 Technology can reach the above features



Orthogonal Frequency-Division Multiple Access (OFDMA).



This feature enables your router and  devices to use your bandwidth more efficiently by reducing the time between data transmissions.

As a result, allowing for a higher density of simultaneous users.

  • OFDMA increase efficiency
  • OFDMA reduces latency
  • Ideal for low-bandwidth applications

OFDM/OFDMA

High-bandwidth traffic efficiency with Multi-User-Multiple-Input Multiple-Output (MU-MIMO).



This technology enables your router to communicate with many devices simultaneously.

  • MU-MIMO increase capacity
  • MU-MIMO results in higher speeds per user
  • Ideal for high-bandwidth applications

Extended battery for mobile and smart home devices with Target Wake Time (TWT).



Target Wakeup Time (TWT) is another important resource scheduling feature supported by 11ax.TWT makes communication between your devices and your router’s Wi-Fi channels more efficient. Devices that support TWT enter a sleep state until their scheduled wake time.
TWT reduces energy consumption and bandwidth use.

Improvements in data speeds and signal encoding.



Wi-Fi 6 enables devices to send more data in one transmission, resulting in speed improvements of up to 20%.

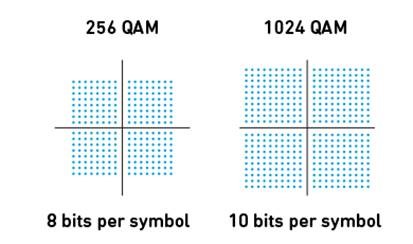

Improvements through higher modulation (1024-QAM). Higher modulation increases the efficiency and speed of data transmission on your network. This technology can give up to 25% improvements in speed. Together, features provide up to 40% improvement in connection speeds.

256QAM-VS.-1024QAM
 802.11ac Wave 2 (Wi-Fi 5)802.11ax (Wi-Fi 6)
Bands5GHz2.4GHz & 5GHz
Channel Bandwidth20MHz, 40MHz, 80MHz, 80+80MHz & 160MHz20MHz/40MHz 80MHz, 80+80MHz & 160MHz
Data Rates

433Mb/s (80MHz, 1 spatial stream)

6933Mb/s (160MHz, 8 spatial stream)

600Mb/s (80MHz, 1 spatial stream)

9607.8Mb/s (160MHz, 8 spatial stream)

Highest Modulation256-QAM1024-QAM
SU/MU-MIMO-OFDM/ASU-MIMO-OFDM Wave 1, MU-MIMO-OFDM Wave 2MU-MIMO-OFDMA

Basic Service Set Coloring (BSS color).



A feature called basic service set (BSS) coloring, which deals with co-channel interference.

  • To increase capacity in a dense environment, we need to increase frequency reuse between BSS’s
  • BSS coloring was a mechanism introduced in 802.11ah to assign a different “ color” per BSS, which will be extended to 11ax
  • New channel access behavior will be assigned based on the color detected
